GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E
Model: ESD5500E
GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E ,factory price with CE verified.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | ESD5500E |
| Working Voltage | 12-32V DC |
| Output Current Range | 0-5A |
Applications
- Mechanical and electronic speed control of GAC diesel engines driving generator sets
- Prime-power sets where load steps demand fast, stable frequency recovery
- Pump and compressor engine packages requiring droop or isochronous governing
Product description

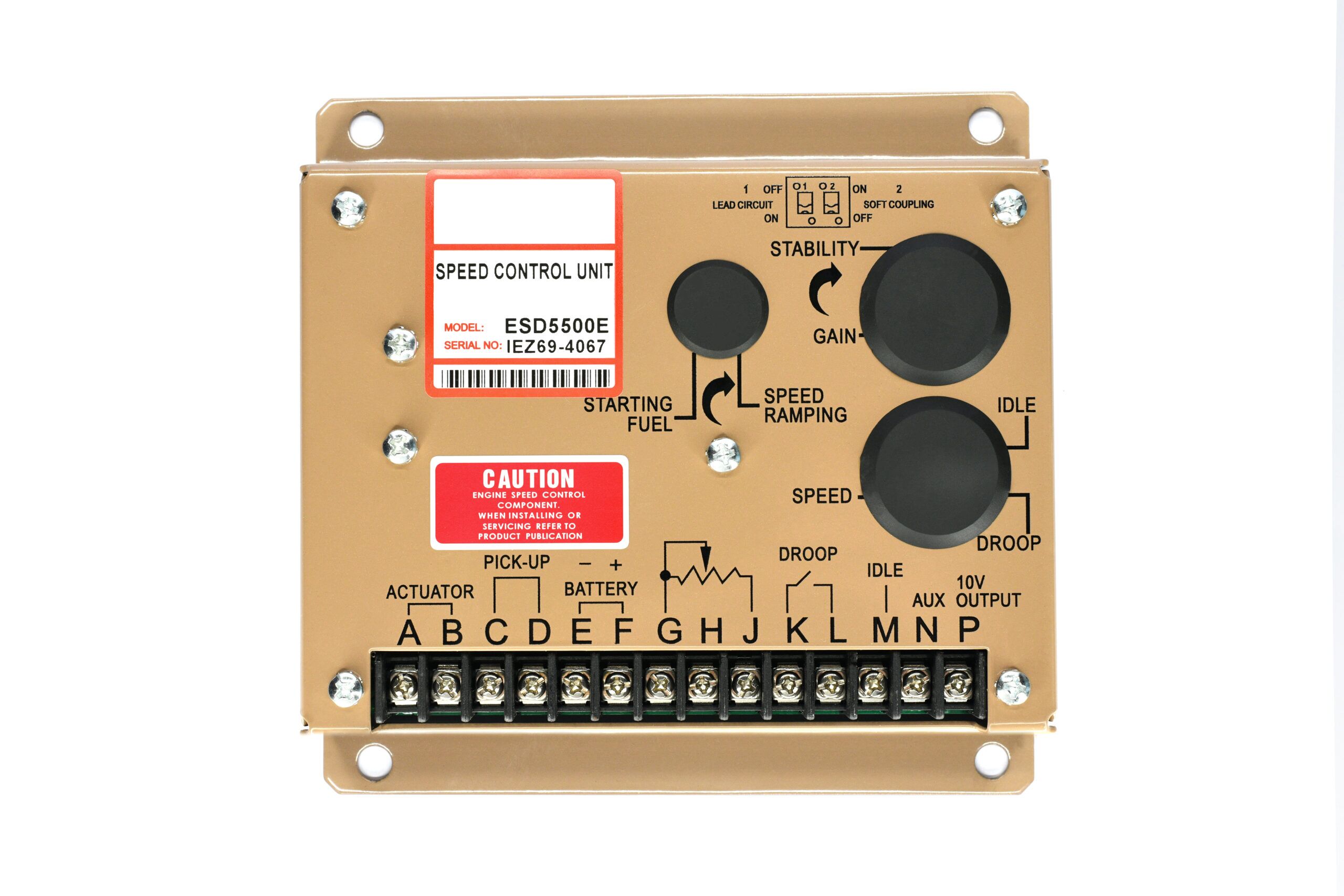

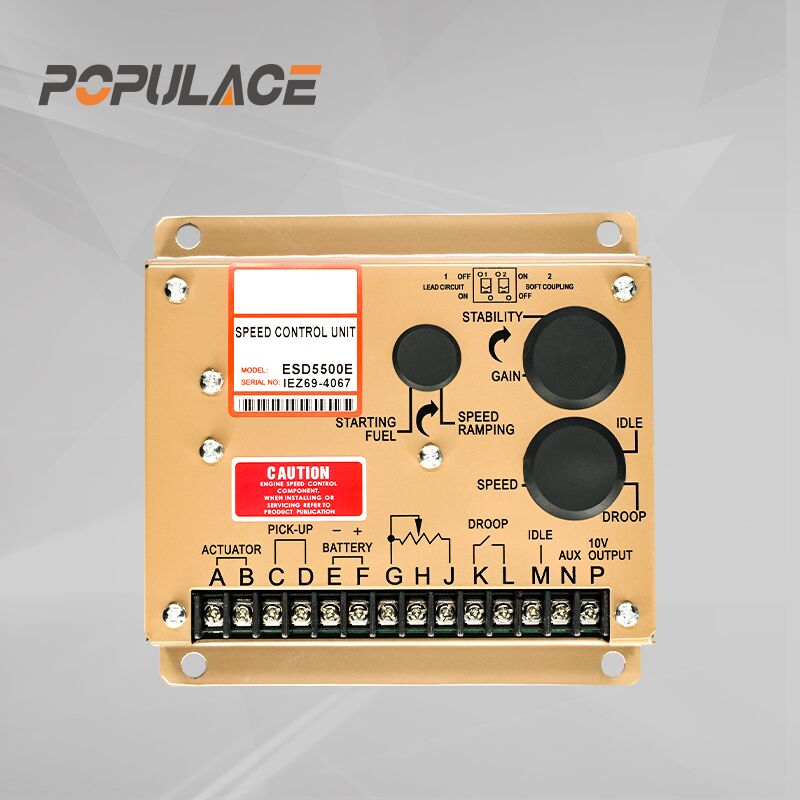

GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E
 | GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E The Genset Speed Controller ESD5500 is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist, or condensation may come in contact with controller, Generator Speed Governor ESD5500 should be mounted vertically. This will allow the fluid to drain away from the speed control unit. |
 | Features *Speed Sensor Signal: 0.5-120 Volts RMS *Isochronous Operation/Steady State Stability: ±0.25% or better *Speed Range/Governor: 1K to 7.5K Hz continuous *Speed Drift with Temperature: ±1 Max *Idle Adjust CCW: Less than 1200 Hz. *Droop Range: 1-5% regulation |
| Product Name | GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E | |
| Input | Supply | 12 or 24 VDC Battery System (Transient and Reverse Voltage) |
| Polarity | Negative Ground (Case Isolated) | |
| Power Consumption | 50 ma continuous plus actuator current | |
| Actuator Current Range @ 25 Deg. C – (Inductive Load) | Min.2.5 Amps; Max. 10Amps continuous | |
| Vibration | 1G at 20 to 100 Hz. |
There are no reviews yet.
Be the first to review “GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E”
Your email address will not be published. Required fields are marked *
Related Products
View All →
FAQ
governor ESD5500E is an OEM-compatible speed control unit. Tell us your engine model and rated RPM and we confirm linkage, droop range and actuator compatibility before shipping.
Yes. Each unit is bench-run for response and droop linearity before dispatch, and the test record travels with your order.
governor ESD5500E is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
20 Years Experience for Genset Parts
POPULACE has 20 years of experience supplying generator parts worldwide — reliable, OEM-compatible, and built for continuous operation.
