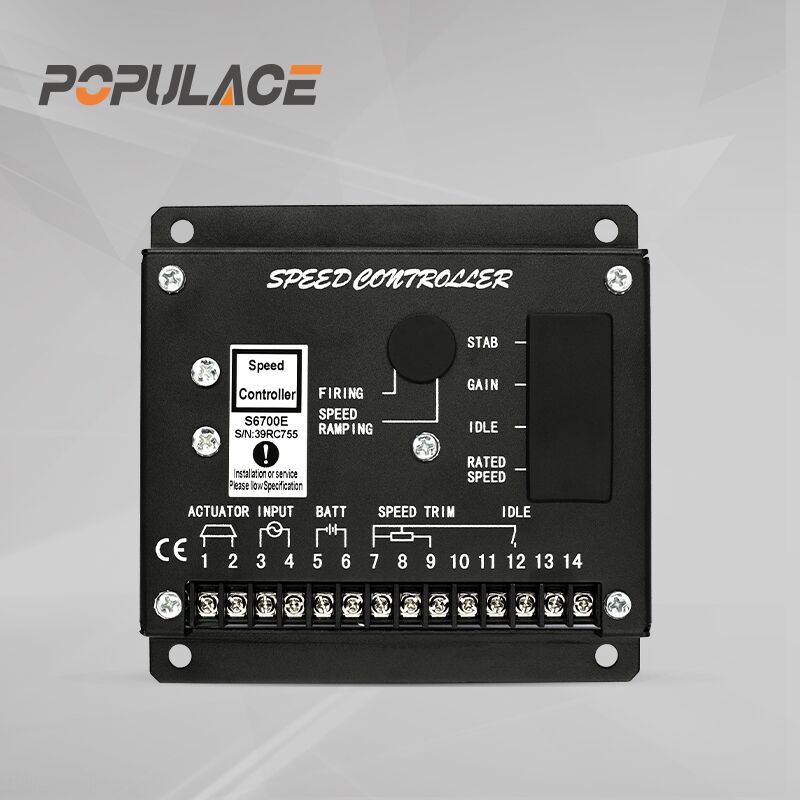

GAC Engine Speed Control Unit Speed Controller Droop Governor S6700E

Model: S6700E

Compatible S6700E engine speed governor at factory price. 100% bench-tested, 13-month warranty, in stock. Request wiring diagram, datasheet & quote.

Warranty13 months
Place of OriginFujian, China
Brand NamePOPULACE
Model NumberS6700E
Working Voltage12-32V DC
Output Current Range0-5A

Applications

  • Mechanical and electronic speed control of GAC diesel engines driving generator sets
  • Prime-power sets where load steps demand fast, stable frequency recovery
  • Pump and compressor engine packages requiring droop or isochronous governing

Product Description

GAC Engine Speed Control Unit Speed Controller Droop Governor S6700E

GAC Governor S6700E

GAC Engine Speed Control Unit Speed Controller Droop Governor S6700E

spare parts petrol generator governor controller S6700E is PID adjustment design. It can instant and accurately reaction to the transient change of the loading then to make the engine speed in stable situation. It can perfectly control the engine speed by connected to the EFC series Electronic Acuator and Speed Sensor. This unit is design to easy installation and can pre-adjustment, including regulation rate and working idling. Different model of EFC series can controll kinds of output generator sets.

GAC Governor S6700E

The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.

spare parts petrol generator governor controller S6700E

Speed stablityBetter than ±0.25%
Speed range1Khz ~ 6.5Khz
ThermostablityMax ± 1%
Speed sensor signal1-20v
Power input
Voltage24V DC
Actuator current range2.5-10A
Steady speed droop0~3% (variable)

GAC Engine Speed Control Unit Speed Controller Droop Governor S6700E — Connection & Terminal Verification

Electrical pinouts, terminal blocks, and sensing wire inputs must match your generator panel layout before applying power.

Terminal & Wiring Notice: Pin assignments and harness connectors can vary between hardware revisions and firmware versions. Never wire terminals based on guesswork or schematics from another model series.

Need help checking terminal compatibility?

Send a clear photo of your existing controller label and rear wire harness to our technical team.

WhatsApp Terminal Verification

Reference Schematics & Terminal Layout

Wiring diagram and terminal reference sheets for GAC Engine Speed Control Unit Speed Controller Droop Governor S6700E are verified individually by our engineering staff upon inquiry. Contact technical support with your panel layout for the matching schematic.

Technical Manual & Documentation

Documentation upon Request

Specific wiring sheets and installation instructions are available for verified generator models. Contact technical support with your module variant to request applicable documents.

FAQ

governor S6700E is a compatible speed control unit. Tell us your engine model and rated RPM and we confirm linkage, droop range and actuator compatibility before shipping.

Yes. Each unit is bench-run for response and droop linearity before dispatch, and the test record travels with your order.

governor S6700E is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.

Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.

Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.

In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.

T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.

Yes. Detailed terminal connection wiring diagrams and user manuals for S6700E are available upon request. Contact our technical support with your generator setup to receive the documentation.

The technical datasheet and complete specification sheet for S6700E can be provided directly by our sales team. Contact [email protected] or submit an inquiry to receive the PDF specification.
