POPULACE

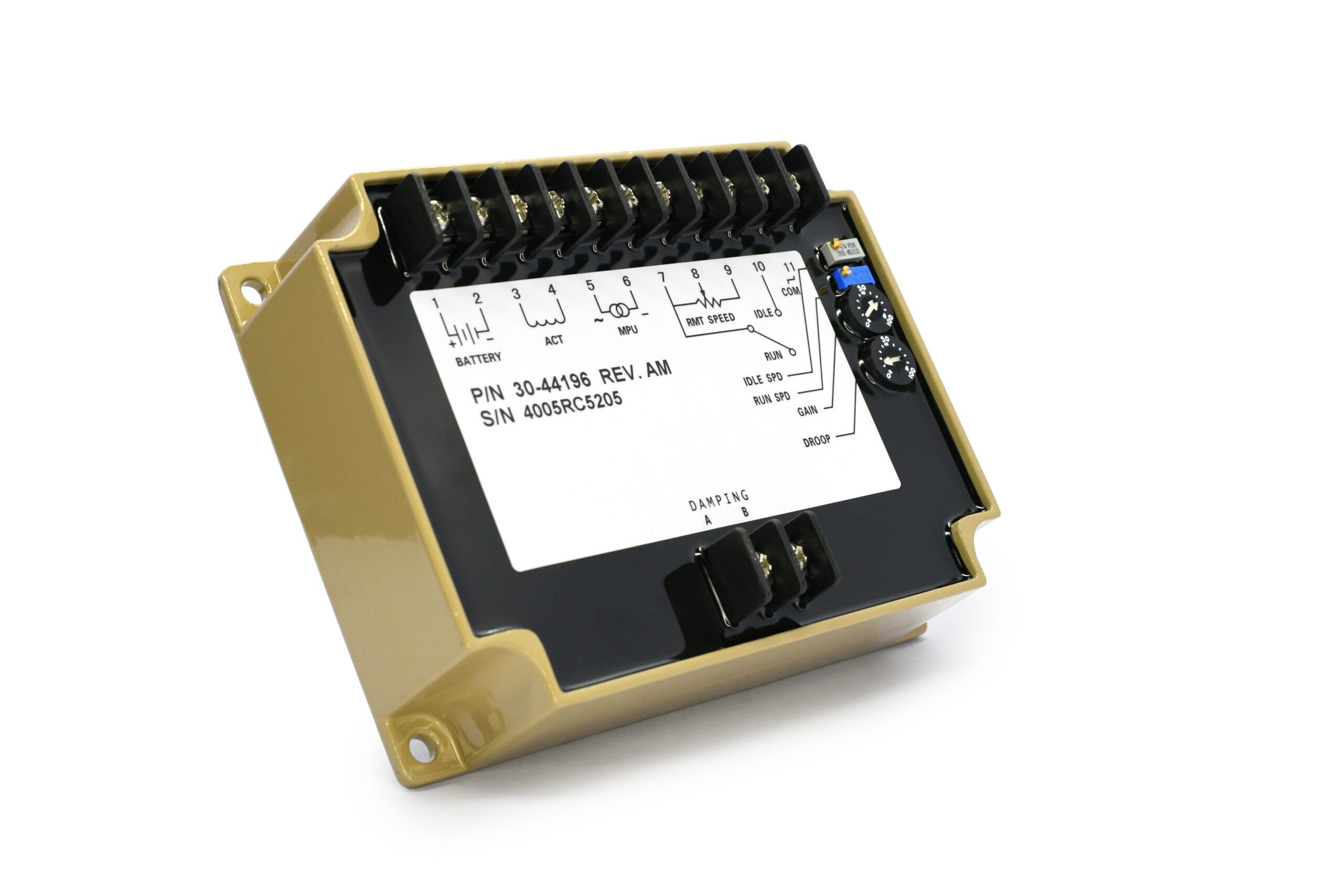

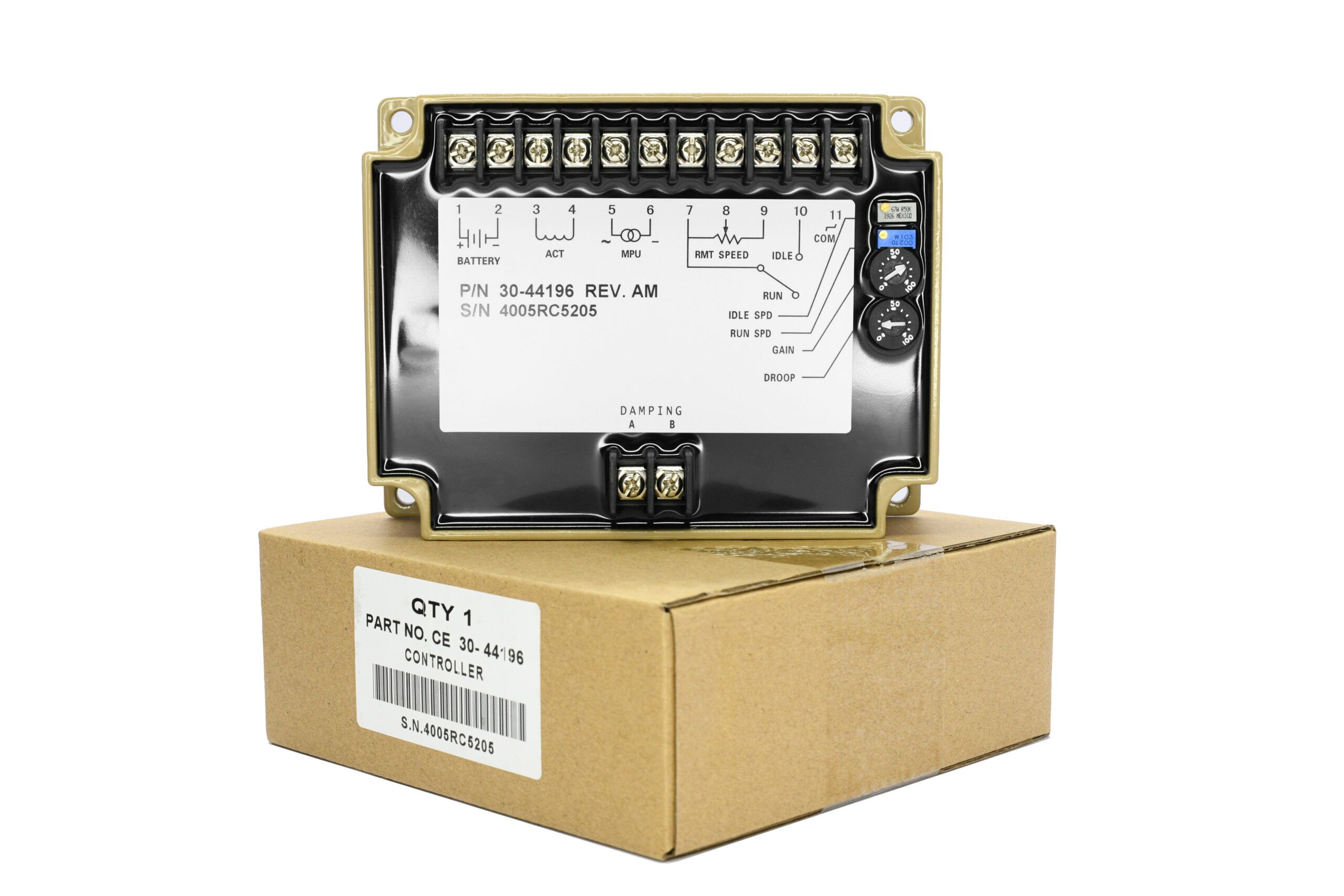

GAC Engine Speed Control Unit Speed Controller Droop Governor 3044196
Model: 3044196
Compatible 3044196 engine speed governor at factory price. 100% bench-tested, 13-month warranty, in stock. Request wiring diagram, datasheet & quote.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | 3044196 |
| Working Voltage | 24±8V DC |
| Output Current Range | 0-2.5A |
Applications
- Mechanical and electronic speed control of GAC diesel engines driving generator sets
- Prime-power sets where load steps demand fast, stable frequency recovery
- Pump and compressor engine packages requiring droop or isochronous governing
Product Description
GAC Engine Speed Control Unit Speed Controller Droop Governor 3044196
 | GAC Engine Speed Control Unit Speed Controller Droop Governor 3044196 Speed Controller 3044196 Electronic Governor For Generators is PID adjustment design. It can instant and accurately reaction to the transient change of the loading then to make the engine speed in stable situation. It can perfectly control the engine speed by connected to the EFC series Electronic Acuator and Speed Sensor. |
 | Features * 24 VDC ±20% * Negative Ground (Case Isolated) * 40 MA * 4.5 A continuous * 2-120 Volts RMS |
| 3044196 Speed Regulator | ||
| Input | Supply | 24 VDC ±20% |
| Polarity | Negative Ground (Case Isolated) | |
| Power Consumption | 40 MA | |
| Maximum Actuator Current | 4.5 A continuous | |
| Speed Sensor Signal | 2-120 Volts RMS | |
| Performance | Isochronous Operation /Steady State Stability | ±0.25% or better |
| Speed Range/Governor | 1K to 6.5K Hz continuous | |
| Speed Drift with Temperature | ±1 Max | |
| Idle Regulation | 260±20 Hz | |
| Droop Adj. Max. | 400 Hz.,±75Hz. Per 1.0A change | |
| Speed Trim Range | ±200 Hz with 1 ohm connected | |
| Remote Variable Speed Range | 25 to 100% of rated speed | |
| Impedance | 1m ohms | |
| Environmental | Ambient Operating Temperature Range | -40 to +85 Deg. C |
| Relative Humidity | Up to 95% | |
| All Surface Finishes | Fungus Proof and Corrosion Resitant | |
| Reliability | Vibration | 20 to 100 Hz. 500mm/sec |
There are no reviews yet.
Be the first to review “GAC Engine Speed Control Unit Speed Controller Droop Governor 3044196”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Generator Engine Hunting: How to Diagnose Governor Instability
Hunting - the engine speed oscillating in a steady rhythm - is a governor-loop problem, not an engine problem. Work outside-in: linkage free play first, then sensor signal, then the controller’s gain and droop settings.
Read Guide → Engineering GuideDiesel Generator Parts Catalog & OEM Replacement Selection Guide
A practical guide to selecting compatible diesel generator replacement parts, covering AVRs, control modules, speed governors, fuel shut off solenoids, and battery chargers.
Read Guide →FAQ
governor 3044196 is an Compatible speed control unit. Tell us your engine model and rated RPM and we confirm linkage, droop range and actuator compatibility before shipping.
Yes. Each unit is bench-run for response and droop linearity before dispatch, and the test record travels with your order.
governor 3044196 is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.

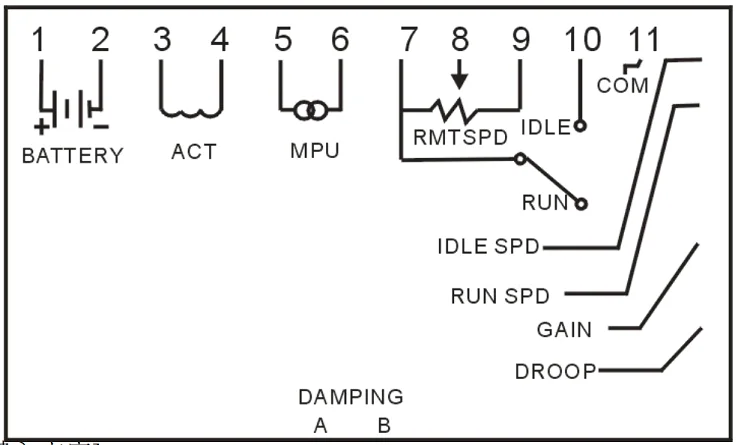

Yes. Detailed terminal connection wiring diagrams and user manuals for 3044196 are available upon request. Contact our technical support with your generator setup to receive the documentation.
The technical datasheet and complete specification sheet for 3044196 can be provided directly by our sales team. Contact [email protected] or submit an inquiry to receive the PDF specification.
