POPULACE

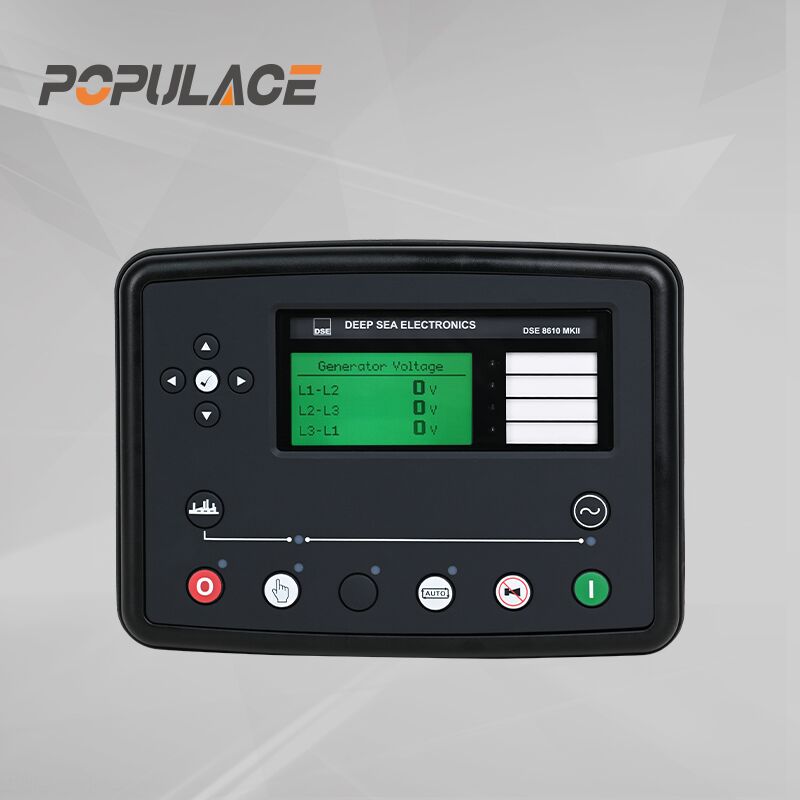

Deep Sea Controller Auto Start Control Module DSE8610 MKII for generator
Model: DSE8610 MKII
Compatible DSE8610 MKII generator controller at factory price. 100% bench-tested, 13-month warranty, in stock. Request wiring diagram, datasheet & wholesale quote.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | DSE8610 MKII |
| Overall Size | 245 mm x 184 mm x 51 mm (9.6' x 7.2' x 2.0') |
| Certification | CE,ISO9001 |
| Panel Cutout Size | 220 mm x 160 mm (8.7' x 6.3') |
Applications
- Open and enclosed Deep Sea-based generator sets needing automatic start/stop, protection and load management
- Mains-failure standby systems in commercial buildings and industrial plants
- Retrofit or replacement of failed Deep Sea modules on service fleets
Product Description
Deep Sea Controller Auto Start Control Module DSE8610 MKII for generator

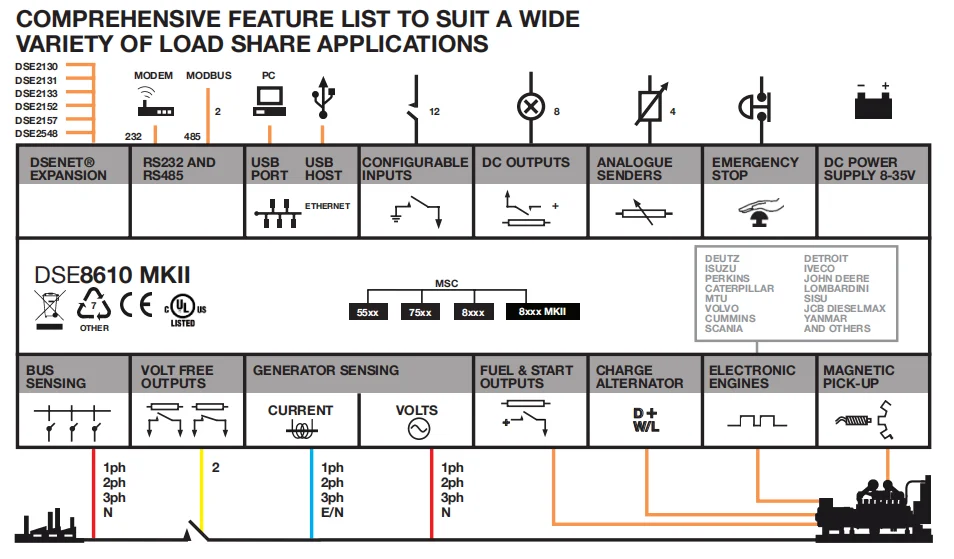

General Features
 | Deep Sea Controller Auto Start Control Module DSE8610 MKII for generator The DSE8610 MKII represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the DSE8610 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry. |
 | Features * OVERALL SIZE 245 mm x 184 mm x 51 mm (9.6″ x 7.2″ x 2.0″) *PANEL CUTOUT SIZE 220 mm x 160 mm (8.7″ x 6.3″) *MAXIMUM PANEL THICKNESS 8.0 mm (0.3″) *WEIGHT 0.88kg *PRODUCT VARIANTS 8610-02 – 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc) |
| CONTINUOUS VOLTAGE RATING | 8 V to 35 V Continuous | |
| GENERATOR | VOLTAGE RANGE | 15 V – 333 V AC (L-N) |
| FREQUENCY RANGE | 3.5 Hz to 75 Hz | |
| OUTPUTS | OUTPUT A (FUEL) | 15 A DC at supply voltage |
| OUTPUT B (START) | 15 A DC at supply voltage | |
| AUXILIARY OUTPUTS E,F,G,H,I & J | 2 A DC at supply voltage |

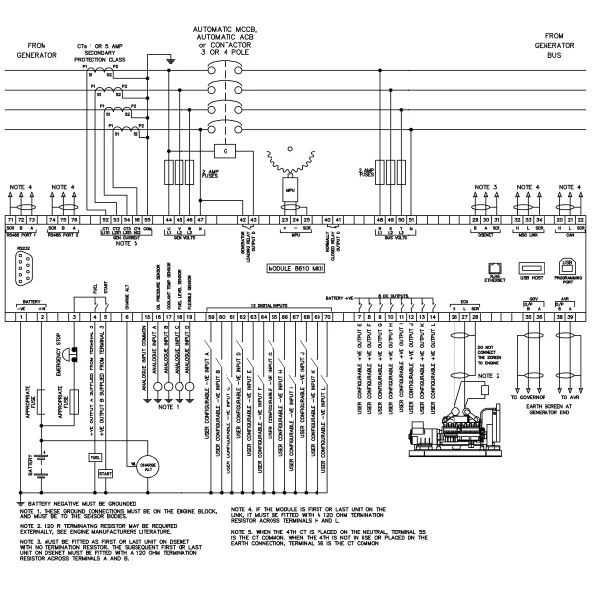

Connection Diagram
There are no reviews yet.
Be the first to review “Deep Sea Controller Auto Start Control Module DSE8610 MKII for generator”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Deep Sea Generator Controller Troubleshooting: Alarm Codes, Wiring & Start Failure Guide
Practical guide to diagnosing Deep Sea generator controllers (DSE7320, DSE6120, DSE4520). Learn how to trace common alarm codes, verify terminal wiring, and resolve fail-to-start faults.
Read Guide → Engineering GuideDiesel Generator Parts Catalog & OEM Replacement Selection Guide
A practical guide to selecting compatible diesel generator replacement parts, covering AVRs, control modules, speed governors, fuel shut off solenoids, and battery chargers.
Read Guide →FAQ
Deep Sea controller DSE8610MKII is an Compatible replacement module. We verify pinout, display and setpoints against your panel; configuration support is included before shipping.
Yes. Every module is powered up, I/O-checked and firmware-verified on our test bench before dispatch.
Deep Sea controller DSE8610MKII: overall size 245 mm x 184 mm x 51 mm (9.6' x 7.2' x 2.0'). Send your panel or packing constraints and we confirm fit.
Deep Sea controller DSE8610MKII is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Deep Sea controller DSE8610MKII carries CE,ISO9001 certification from our ISO9001-certified Xiamen facility.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
Yes. Detailed terminal connection wiring diagrams and user manuals for DSE8610 MKII are available upon request. Contact our technical support with your generator setup to receive the documentation.
The technical datasheet and complete specification sheet for DSE8610 MKII can be provided directly by our sales team. Contact [email protected] or submit an inquiry to receive the PDF specification.
