Deep Sea Controller Auto Start Control Module DSE7320 for generator
Model: DSE7320
Compatible DSE7320 generator controller at factory price. 100% bench-tested, 13-month warranty, in stock. Request wiring diagram, datasheet & wholesale quote.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | DSE7320 |
| Overall Size | 245 x 184 x 51 mm |
| Certification | CE,ISO9001 |
| Panel Cutout Size | 220 x 160 mm |
Applications
- Open and enclosed Deep Sea-based generator sets needing automatic start/stop, protection and load management
- Mains-failure standby systems in commercial buildings and industrial plants
- Retrofit or replacement of failed Deep Sea modules on service fleets
Product Description

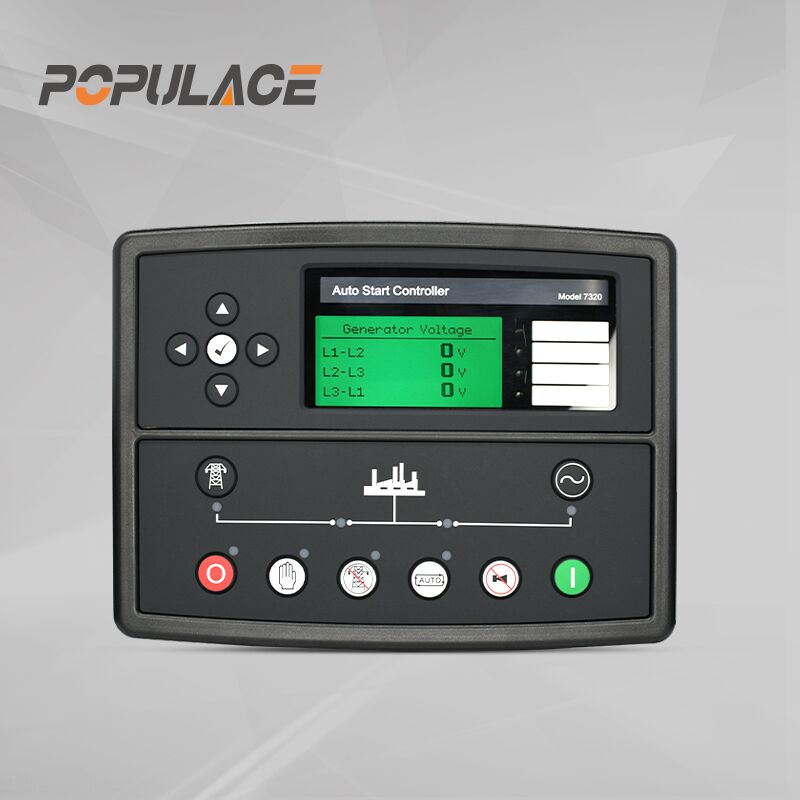

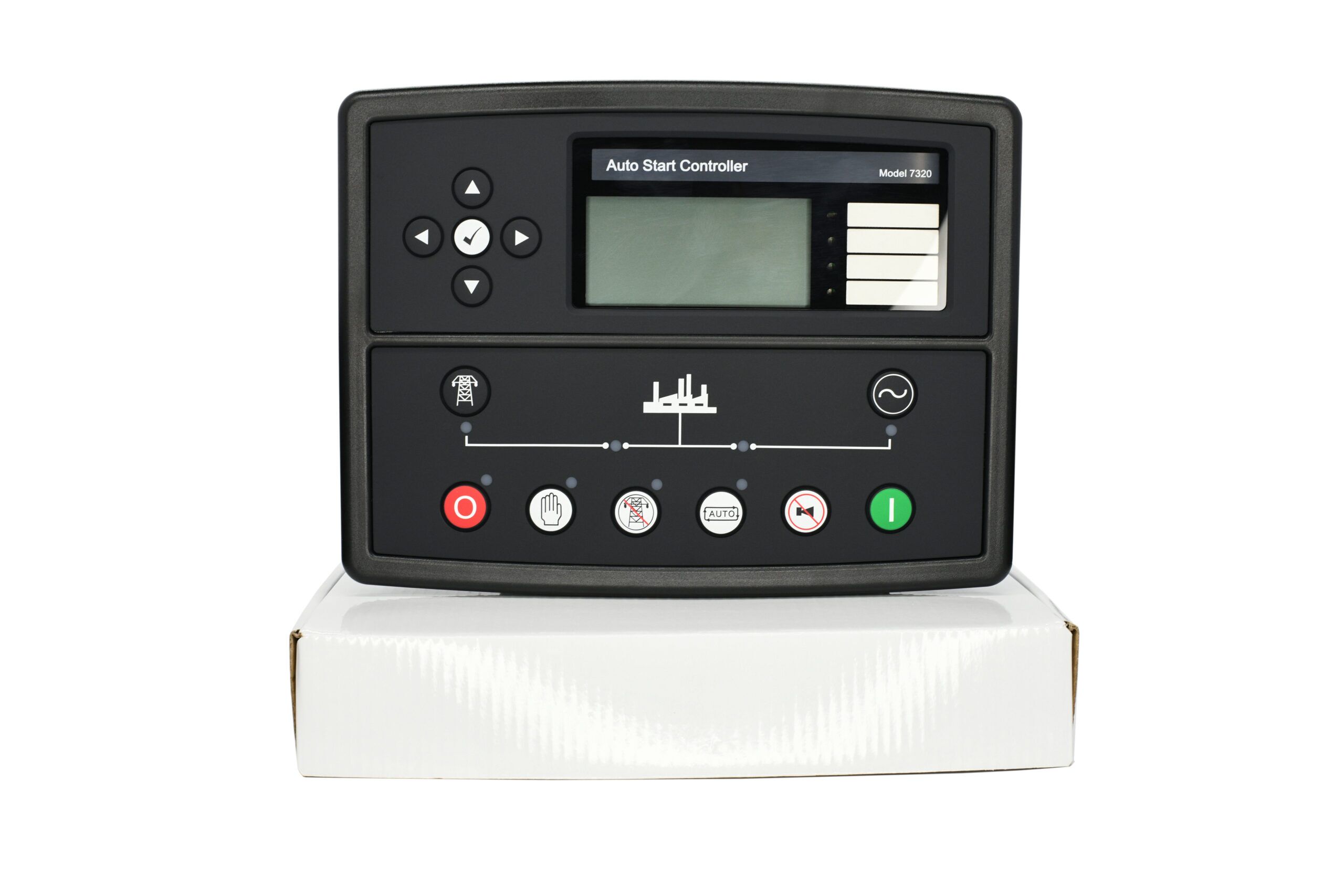

Deep Sea Controller Auto Start Control Module DSE7320 for generator
General Features
| Deep Sea Controller Auto Start Control Module DSE7320 for generator The 7320 is a powerful, new generation Auto Mains (Utility) Failure genset control module with a highly sophisticated level of new features and functions, presented in the usual user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications. |
 | Features *OVERALL SIZE 245 mm x 184 mm x 51 mm (9.6″ x 7.2″ x 2.0″) *PANEL CUTOUT SIZE 220 mm x 160 mm (8.7″ x 6.3″) *MAXIMUM PANEL THICKNESS 8.0 mm (0.3″) *PRODUCT VARIANTS 7320-03 – 7320 MKII Auto Mains (Utility) Failure Control Module |
| Product Name | Deep Sea Controller Auto Start Control Module DSE7320 for generator | |
| GENERATOR&MAINS(UTILITY) | VOLTAGE RANGE | 15V to 415V AC(Ph to N) |
| 25V to 719V AC(Ph to Ph) | ||
| MAGNETIC PICK UP | VOLTAGE RANGE | +/- 0.5V to 70V |
| FREQUENCY RANGE | 10.000Hz(MAX) | |
| MAXIMUM OPERATING CURRENT | 510mA at 12V,240mA at 24V |

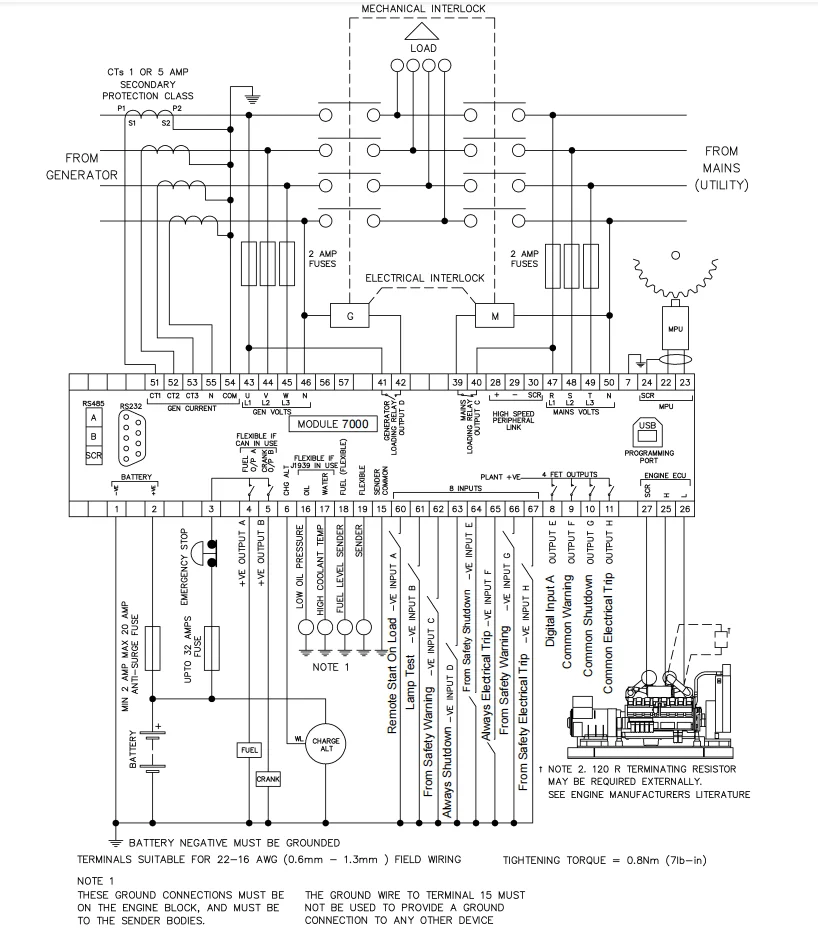

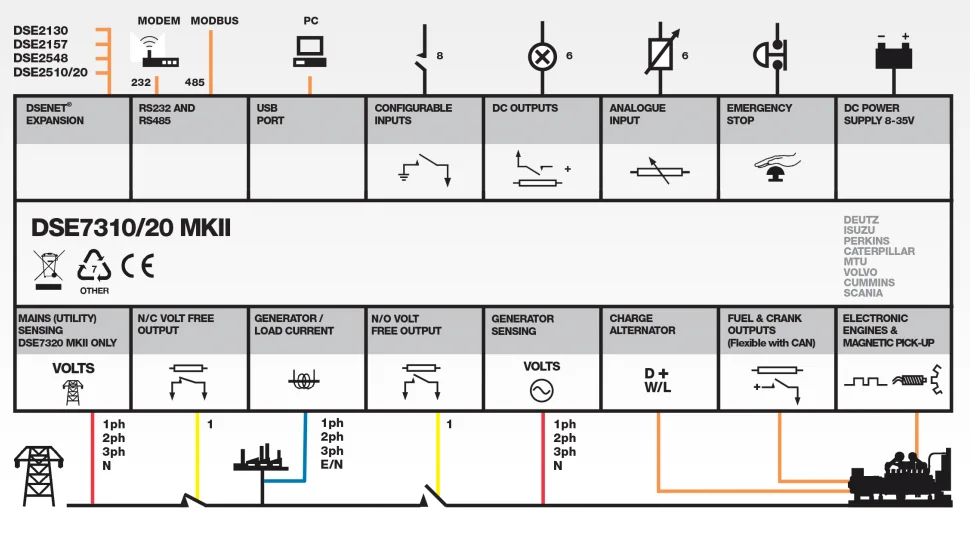

Connection Diagram
There are no reviews yet.
Be the first to review “Deep Sea Controller Auto Start Control Module DSE7320 for generator”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Deep Sea Generator Controller Troubleshooting: Alarm Codes, Wiring & Start Failure Guide
Practical guide to diagnosing Deep Sea generator controllers (DSE7320, DSE6120, DSE4520). Learn how to trace common alarm codes, verify terminal wiring, and resolve fail-to-start faults.
Read Guide → Engineering GuideDiesel Generator Parts Catalog & OEM Replacement Selection Guide
A practical guide to selecting compatible diesel generator replacement parts, covering AVRs, control modules, speed governors, fuel shut off solenoids, and battery chargers.
Read Guide →FAQ
Deep Sea controller DSE7320 is an Compatible replacement module. We verify pinout, display and setpoints against your panel; configuration support is included before shipping.
Yes. Every module is powered up, I/O-checked and firmware-verified on our test bench before dispatch.
Deep Sea controller DSE7320: overall size 245 x 184 x 51 mm. Send your panel or packing constraints and we confirm fit.
Deep Sea controller DSE7320 is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Deep Sea controller DSE7320 carries CE,ISO9001 certification from our ISO9001-certified Xiamen facility.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
Yes. Detailed terminal connection wiring diagrams and user manuals for DSE7320 are available upon request. Contact our technical support with your generator setup to receive the documentation.
The technical datasheet and complete specification sheet for DSE7320 can be provided directly by our sales team. Contact [email protected] or submit an inquiry to receive the PDF specification.
