Deep Sea Controller Auto Start Control Module DSE710 for generator
Model: DSE710
Deep Sea Controller Auto Start Control Module DSE710 for generator,factory price with CE verified.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | DSE710 |
| Overall Size | 209 x 146 x 30.3 mm |
| Certification | CE,ISO9001 |
| Panel Cutout Size | 182 x 137 mm |
Applications
- Open and enclosed Deep Sea-based generator sets needing automatic start/stop, protection and load management
- Mains-failure standby systems in commercial buildings and industrial plants
- Retrofit or replacement of failed Deep Sea modules on service fleets
Product description
Deep Sea Controller Auto Start Control Module DSE710 for generator
General Features
 | Deep Sea Controller Auto Start Control Module DSE710 for generator Auto Start Control Modules The DSE710 is an Automatic Start Control Module suitable for a wide variety of single diesel or gas genset applications. Monitoring an advanced list of engine parameters, the DSE710 will automatically shut down the engine or indicate a warning, on detection of a fault condition. |
 | Features *Overall Size: 209 mm x 146 mm x 30.3 mm *Panel Cutout Size: 182 mm x 137 mm *Maximum Panel Thickness: 8.0 mm (0.3″) Product Size: 275mm185mm*50mm *Weight: 0.94kg |
| Product Name | Auto Start Generator Control Panel DSE710 | |
| Controll Funtion | Auto-test Commercial power | Emergence Stop |
| Manual Start/STOP | Long-Distance Start/Stop | |
| Protection Funtion | Low-Lubrition Oil | Charging failure |
| Over Voltage,Over load | High water temperature | |
| Data display | Battery Voltage/Oil pressure/Operation Time/Frequency/Voltage/Amper/Water Temperature/Speed |

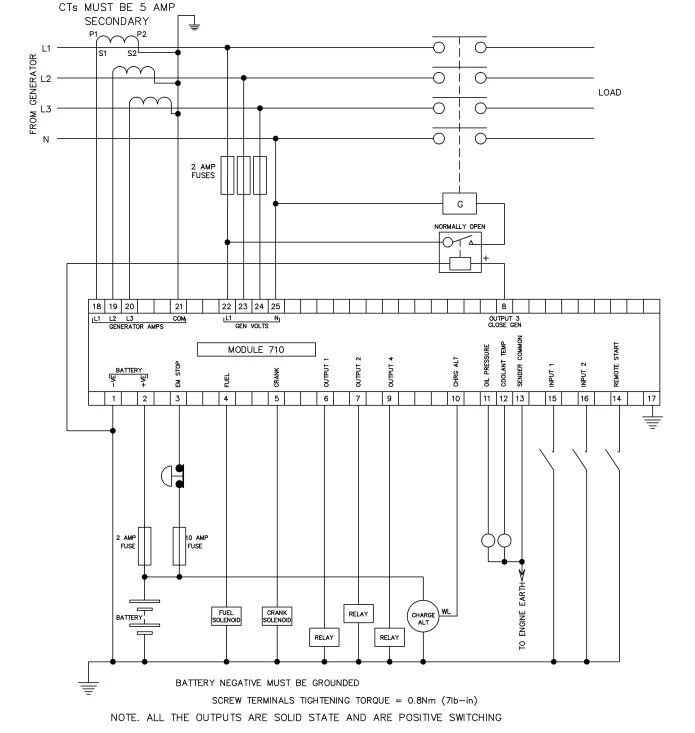

Connection Diagram
There are no reviews yet.
Be the first to review “Deep Sea Controller Auto Start Control Module DSE710 for generator”
Your email address will not be published. Required fields are marked *
Related Products
View All →
FAQ
Deep Sea controller DSE710 is an OEM-compatible replacement module. We verify pinout, display and setpoints against your panel; configuration support is included before shipping.
Yes. Every module is powered up, I/O-checked and firmware-verified on our test bench before dispatch.
Deep Sea controller DSE710: overall size 209 x 146 x 30.3 mm. Send your panel or packing constraints and we confirm fit.
Deep Sea controller DSE710 is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Deep Sea controller DSE710 carries CE,ISO9001 certification from our ISO9001-certified Xiamen facility.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
