POPULACE

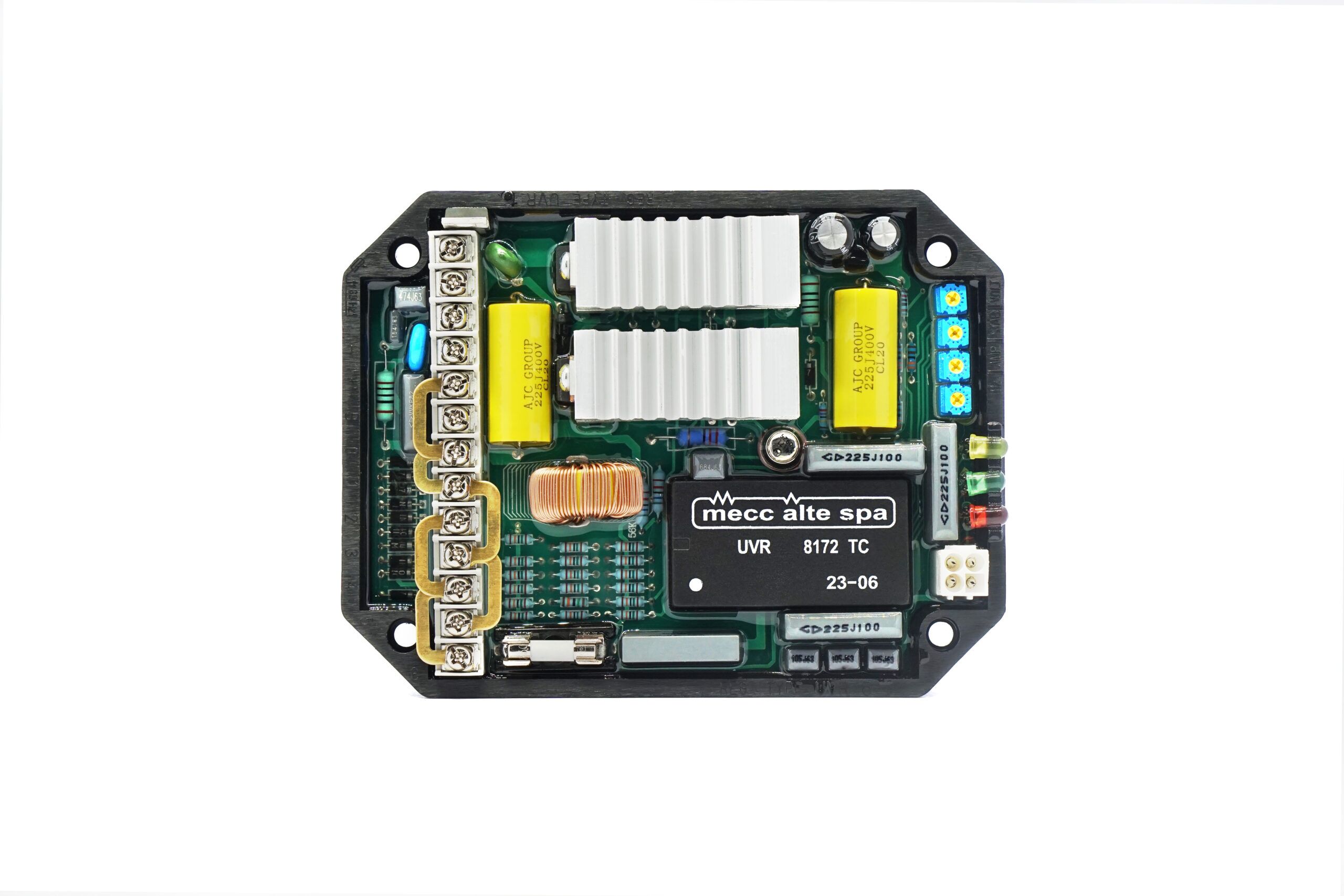

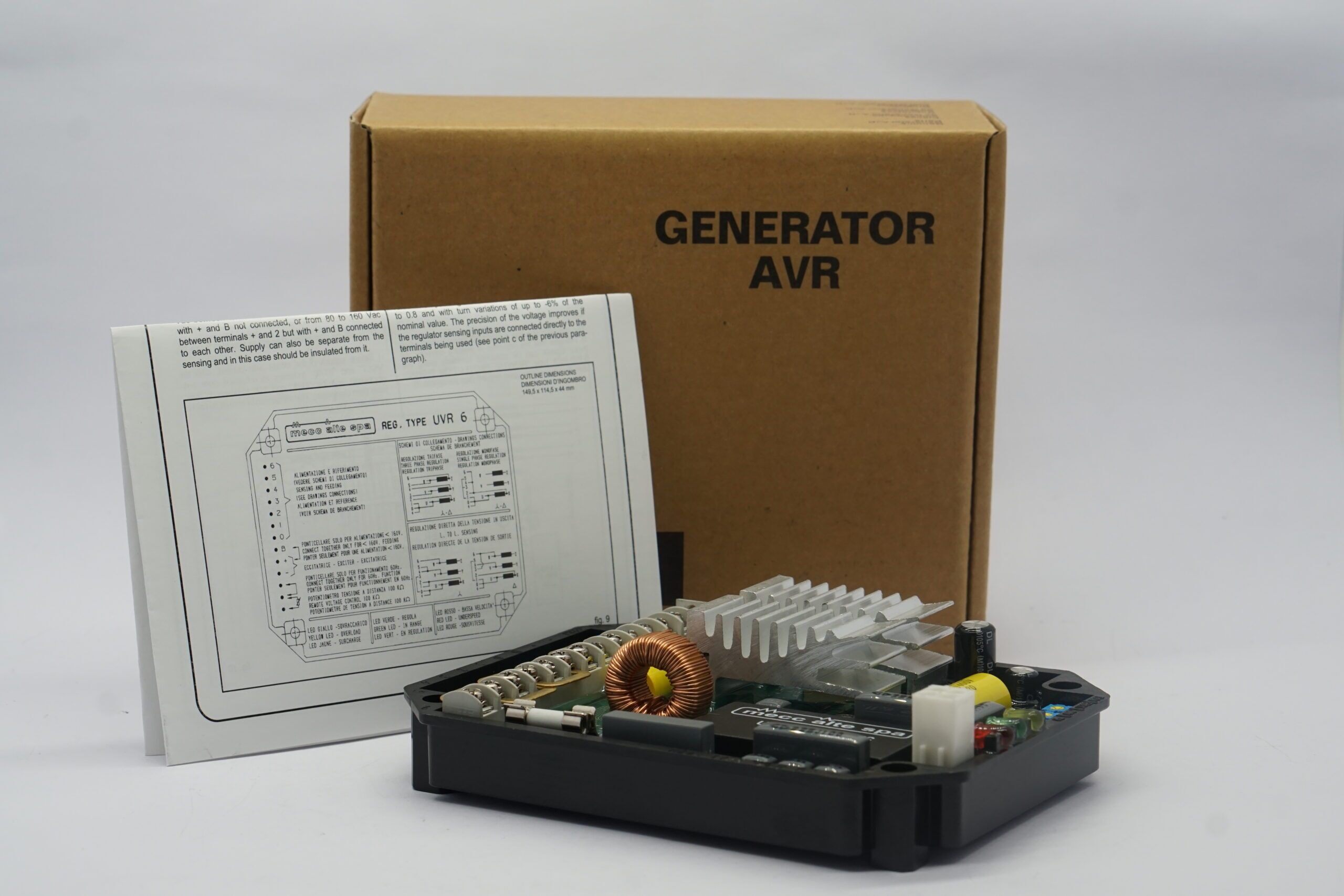

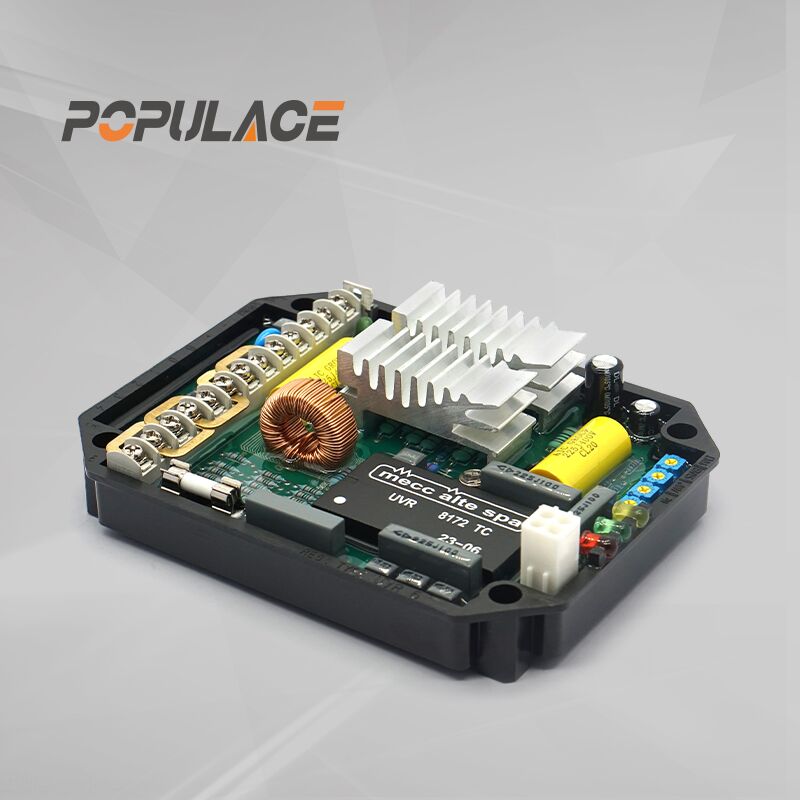

Generator Automatic Voltage Regulator Mecc Alte AVR UVR6
Model: UVR6
Compatible UVR6 generator AVR at factory wholesale price. 100% bench-tested, 13-month warranty, in stock. Request wiring diagram, datasheet & quote.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | UVR6 |
| Overall Size | 170×130×80mm |
| Weight | 0.6kg |
| Certification | CE,ISO9001 |
Applications
- Standby and prime diesel generator sets fitted with Mecc Alte alternators in telecom, data-centre and hospital backup power
- Commercial and industrial gensets requiring stable output voltage under varying load
- Alternator rewinds and rebuilds where the original AVR is obsolete or damaged
Product Description
Generator Automatic Voltage Regulator Mecc Alte AVR UVR6
General Features
 | Generator Automatic Voltage Regulator Mecc Alte AVR UVR6 The UVR6 voltage regulator is an advanced design electronic regulator that ensures excellent performance of the lternators while they are running and during starting. The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine. The UVR6 regulator is suitable for being used with all nators and is standard provide for power outputs above or equal to 85KVA, both three-phase and single phase. |
 | Features* AVR UVR6 voltage regulator is an advanced design. * UVR6 equipped with a complete protection system. * It is 3. Suitable for being used with all nators * It is standard supply for power outputs above or equal to 85 KVA, both three-phase and single phase. |
| Product Name | Brushless Generator AVR Automatic Voltage Regulator Generator/Alterantor part AVR UVR6 | |
| Sensing/Power input | Voltage | Terminal 1.2.3.4.5.6 can be connected to Y or 220-480Vac 1 or 3 phase |
| Frequency | 50/60 Hz jumper selectable | |
| Output | Voltage | 63Vdc 220V input |
| Current | Continuous 6A max,intermittent 7A for 10 seconds | |
| Size | Standard Size |
There are no reviews yet.
Be the first to review “Generator Automatic Voltage Regulator Mecc Alte AVR UVR6”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Generator AVR Not Producing Voltage: 5 Causes and How to Test Them
A generator that runs but produces no power is most often an excitation or AVR problem. Here are the five causes we see most in the field, the multimeter check for each, and when the regulator itself needs replacing.
Read Guide → Engineering GuideGenerator Rotating Rectifier Diode Testing: How to Test Forward & Reverse Diodes with a Multimeter
Comprehensive guide to testing generator rotating rectifier assemblies (RSK1001, RSK2001, RSK5001, SSAYEC432). Learn how to diagnose shorted diodes, verify surge varistors, and replace rectifiers.
Read Guide →FAQ
Mecc Alte AVR UVR6 is an Compatible replacement. Send a photo of your alternator nameplate (model, voltage, frequency) and our engineers confirm the match against UVR6 before dispatch.
Yes. Output voltage, stability adjustment and protection functions are bench-tested on every unit, and the test record travels with your order.
Mecc Alte AVR UVR6: overall size 170×130×80mm, shipping weight approx. 0.6kg. Send your panel or packing constraints and we confirm fit.
Mecc Alte AVR UVR6 is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Mecc Alte AVR UVR6 carries CE,ISO9001 certification from our ISO9001-certified Xiamen facility.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
Yes. Detailed terminal connection wiring diagrams and user manuals for UVR6 are available upon request. Contact our technical support with your generator setup to receive the documentation.
The technical datasheet and complete specification sheet for UVR6 can be provided directly by our sales team. Contact [email protected] or submit an inquiry to receive the PDF specification.
