Generator Automatic Voltage Regulator Mecc Alte AVR DSR
Model: DSR
Compatible DSR generator AVR at factory wholesale price. 100% bench-tested, 13-month warranty, in stock. Request wiring diagram, datasheet & quote.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | DSR |
| Overall Size | 165×145×55mm |
| Weight | 0.55kg |
| Certification | CE,ISO9001 |
Applications
- Standby and prime diesel generator sets fitted with Mecc Alte alternators in telecom, data-centre and hospital backup power
- Commercial and industrial gensets requiring stable output voltage under varying load
- Alternator rewinds and rebuilds where the original AVR is obsolete or damaged
Product Description
Generator Automatic Voltage Regulator Mecc Alte AVR DSR
General Features
 | Generator Automatic Voltage Regulator Mecc Alte AVR DSR This model is designed for replacement for generator. It is equipped with an RS485 & RS232 interface for communications when necessary. The supervision unit can be made up of a personal computer, another “synoptic”device or both; it does not have the function of controlling the system in real time, but allows programming and visualisation of all operational parameters of the DSR. |

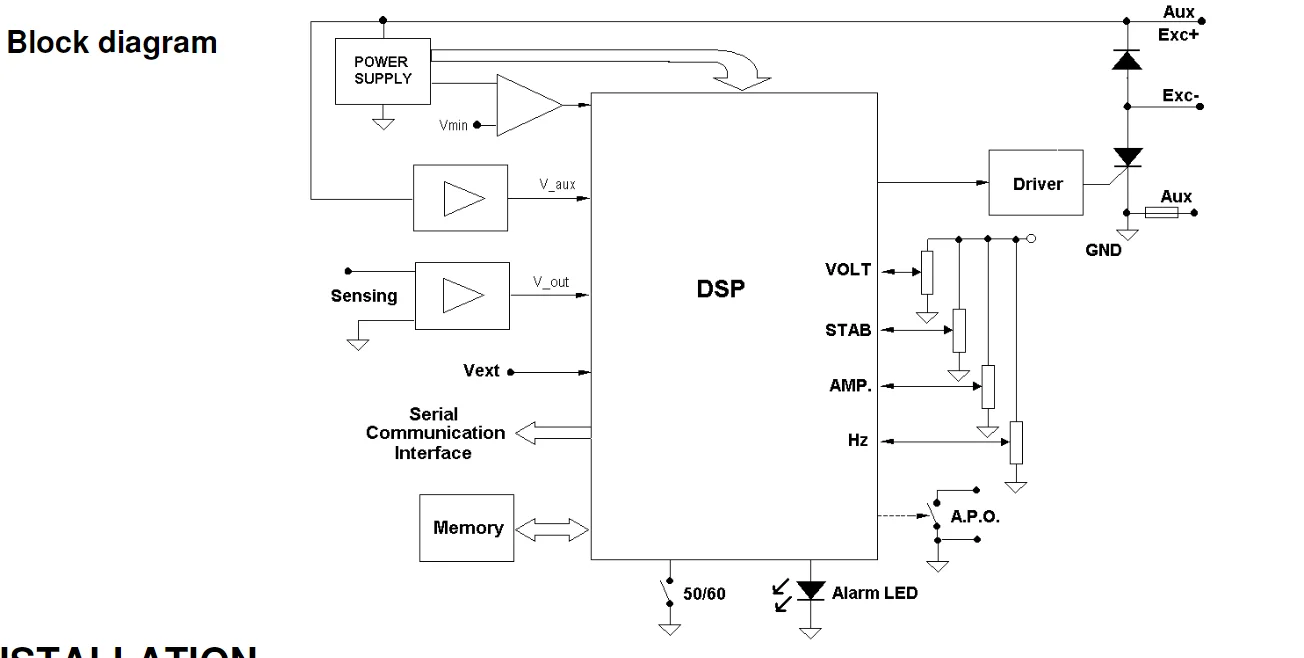

 | Features• Full digital controlled regulator, based on DSP • On-board machine installation • Suitable for all self-regulated alternators • Voltage supply: 40Vac÷270Vac (from auxiliary winding, output voltage or PMG) • Frequency range: 12Hz ÷ 72Hz • “Sensing” of voltage with true rms or average measurement (70÷280 Vac) • Maximum continuous output current: 4Adc; • Precision of voltage regulation: ± 1% from no-load to nominal load in static condition, with any power • Factor and for frequency variations ranging from -5% to +20% of the nominal value. • Transient power drops and over voltage within ± 15% |

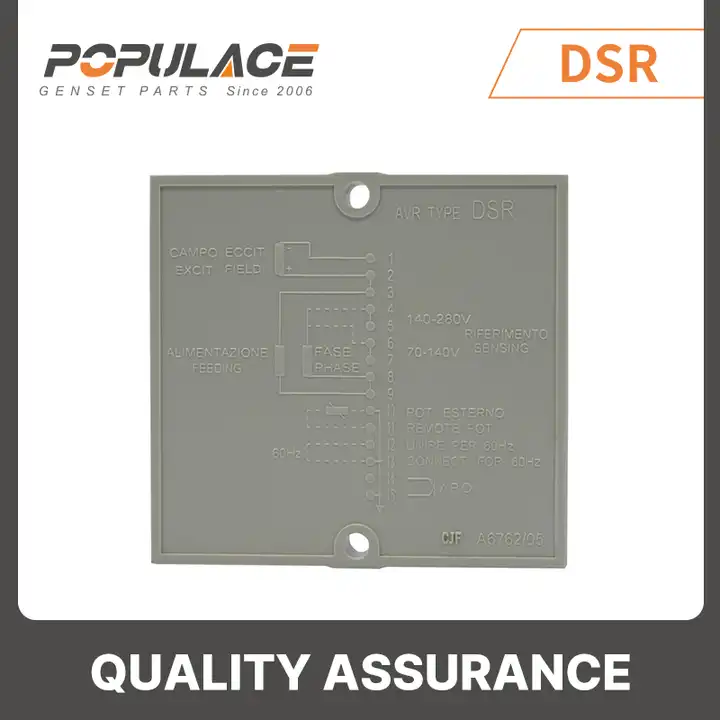

Wiring Diagram
There are no reviews yet.
Be the first to review “Generator Automatic Voltage Regulator Mecc Alte AVR DSR”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Generator AVR Not Producing Voltage: 5 Causes and How to Test Them
A generator that runs but produces no power is most often an excitation or AVR problem. Here are the five causes we see most in the field, the multimeter check for each, and when the regulator itself needs replacing.
Read Guide → Engineering GuideGenerator Rotating Rectifier Diode Testing: How to Test Forward & Reverse Diodes with a Multimeter
Comprehensive guide to testing generator rotating rectifier assemblies (RSK1001, RSK2001, RSK5001, SSAYEC432). Learn how to diagnose shorted diodes, verify surge varistors, and replace rectifiers.
Read Guide →FAQ
Mecc Alte AVR DSR is an Compatible replacement. Send a photo of your alternator nameplate (model, voltage, frequency) and our engineers confirm the match against DSR before dispatch.
Yes. Output voltage, stability adjustment and protection functions are bench-tested on every unit, and the test record travels with your order.
Mecc Alte AVR DSR: overall size 165×145×55mm, shipping weight approx. 0.55kg. Send your panel or packing constraints and we confirm fit.
Mecc Alte AVR DSR is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Mecc Alte AVR DSR carries CE,ISO9001 certification from our ISO9001-certified Xiamen facility.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
Yes. Detailed terminal connection wiring diagrams and user manuals for DSR are available upon request. Contact our technical support with your generator setup to receive the documentation.
The technical datasheet and complete specification sheet for DSR can be provided directly by our sales team. Contact [email protected] or submit an inquiry to receive the PDF specification.
