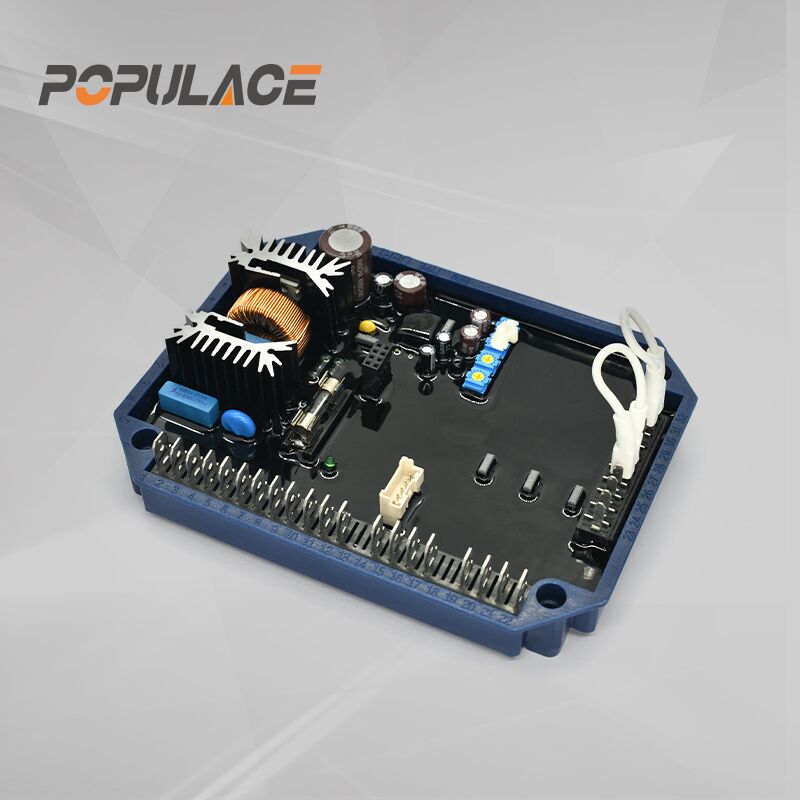

Generator Automatic Voltage Regulator Mecc Alte AVR DER1
Model: DER1
Compatible DER1 generator AVR at factory wholesale price. 100% bench-tested, 13-month warranty, in stock. Request wiring diagram, datasheet & quote.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | DER1 |
| Overall Size | 140×110×60mm |
| Weight | 1kg |
| Certification | CE,ISO9001 |
Applications
- Standby and prime diesel generator sets fitted with Mecc Alte alternators in telecom, data-centre and hospital backup power
- Commercial and industrial gensets requiring stable output voltage under varying load
- Alternator rewinds and rebuilds where the original AVR is obsolete or damaged
Product Description
Generator Automatic Voltage Regulator Mecc Alte AVR DER1
General Features
 | Generator Automatic Voltage Regulator Mecc Alte AVR DER1 Automatic Voltage Regulator Sensing Input 120V or 240V DER1 self excited brushless type genset voltage regulator is a compatible replacement for SX460 and 305-0982. |
 | Features * Soft start voltage ramping
* Voltage supply 40Vac-270Vac (from auxiliary winding, output voltage or PMG) |
| Variable voltage | 40-270 Vac |
| Sensing type | 1/3 phase |
| Frequency | 12Hz – 72Hz |
| Continuous current | 5 Adc max |
| Voltage regulation | < ± 1% |
| Excitation current | 4A |
| Temperature range | -25°C ~ +70°C |

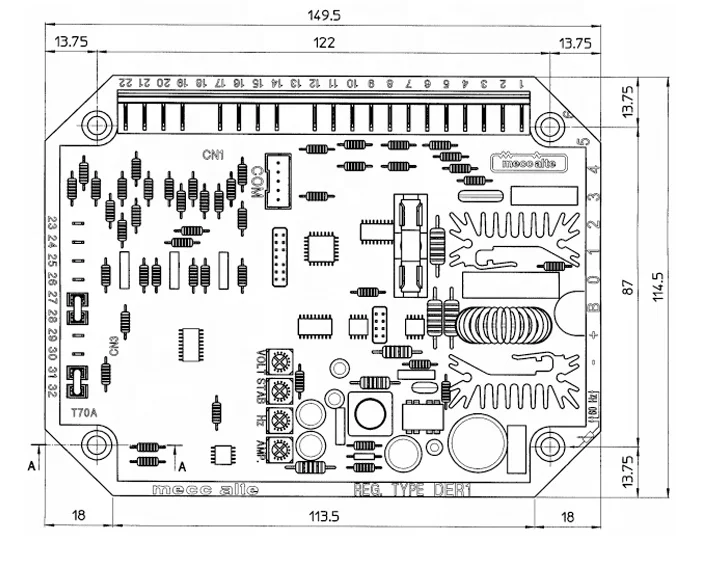

Connection Diagram
There are no reviews yet.
Be the first to review “Generator Automatic Voltage Regulator Mecc Alte AVR DER1”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Generator AVR Not Producing Voltage: 5 Causes and How to Test Them
A generator that runs but produces no power is most often an excitation or AVR problem. Here are the five causes we see most in the field, the multimeter check for each, and when the regulator itself needs replacing.
Read Guide → Engineering GuideGenerator Rotating Rectifier Diode Testing: How to Test Forward & Reverse Diodes with a Multimeter
Comprehensive guide to testing generator rotating rectifier assemblies (RSK1001, RSK2001, RSK5001, SSAYEC432). Learn how to diagnose shorted diodes, verify surge varistors, and replace rectifiers.
Read Guide →FAQ
Mecc Alte AVR DER1 is an Compatible replacement. Send a photo of your alternator nameplate (model, voltage, frequency) and our engineers confirm the match against DER1 before dispatch.
Yes. Output voltage, stability adjustment and protection functions are bench-tested on every unit, and the test record travels with your order.
Mecc Alte AVR DER1: overall size 140×110×60mm, shipping weight approx. 1kg. Send your panel or packing constraints and we confirm fit.
Mecc Alte AVR DER1 is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Mecc Alte AVR DER1 carries CE,ISO9001 certification from our ISO9001-certified Xiamen facility.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
Yes. Detailed terminal connection wiring diagrams and user manuals for DER1 are available upon request. Contact our technical support with your generator setup to receive the documentation.
The technical datasheet and complete specification sheet for DER1 can be provided directly by our sales team. Contact [email protected] or submit an inquiry to receive the PDF specification.
