Generator Automatic Voltage Regulator Leroy Somer AVR R230
Model: R230
Compatible R230 generator AVR at factory wholesale price. 100% bench-tested, 13-month warranty, in stock. Request wiring diagram, datasheet & quote.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | R230 |
| Overall Size | 155×90×60mm |
| Weight | 0.3kg |
| Certification | CE,ISO9001 |
Applications
- Standby and prime diesel generator sets fitted with Leroy Somer alternators in telecom, data-centre and hospital backup power
- Commercial and industrial gensets requiring stable output voltage under varying load
- Alternator rewinds and rebuilds where the original AVR is obsolete or damaged
Product Description

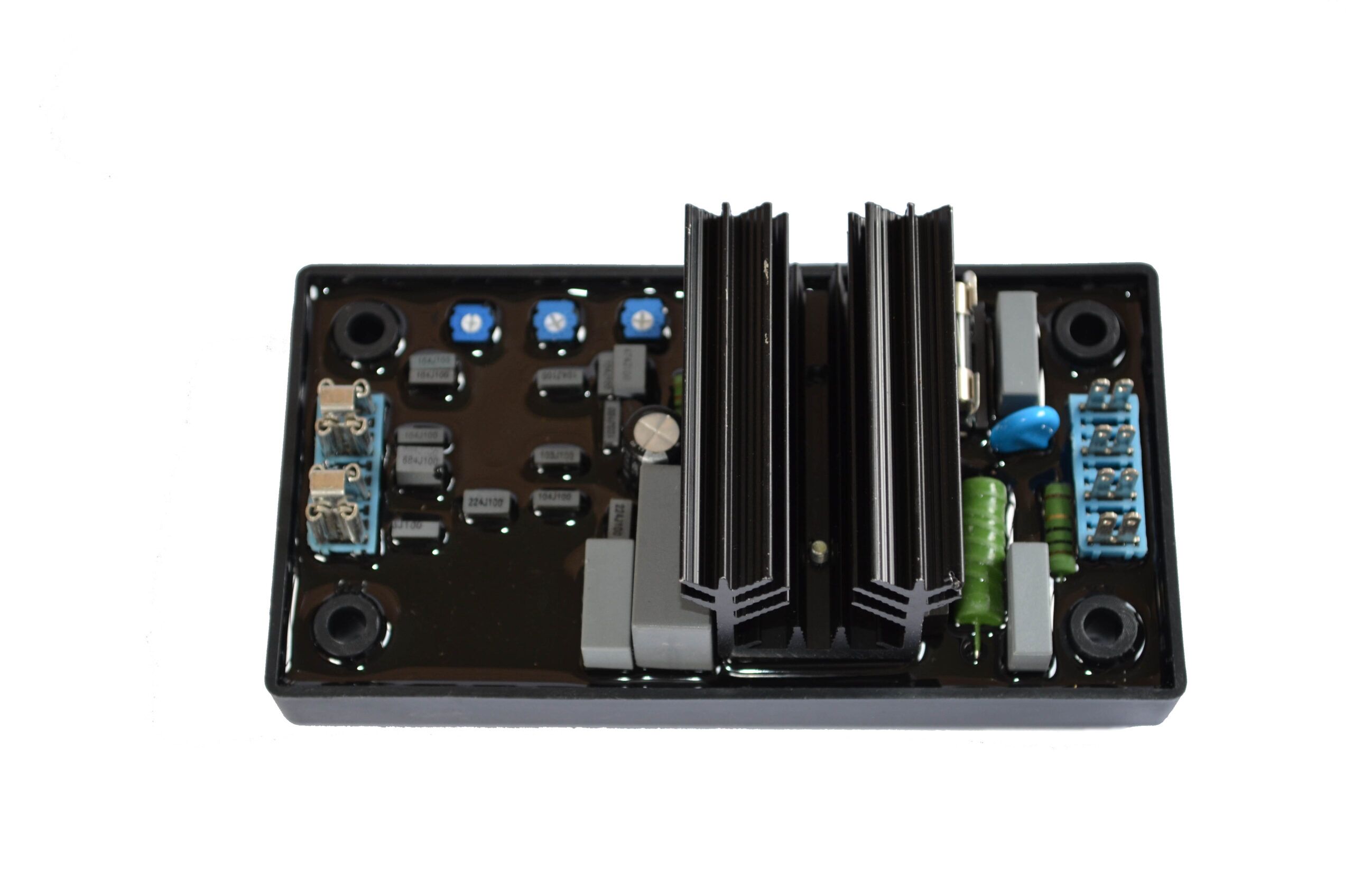

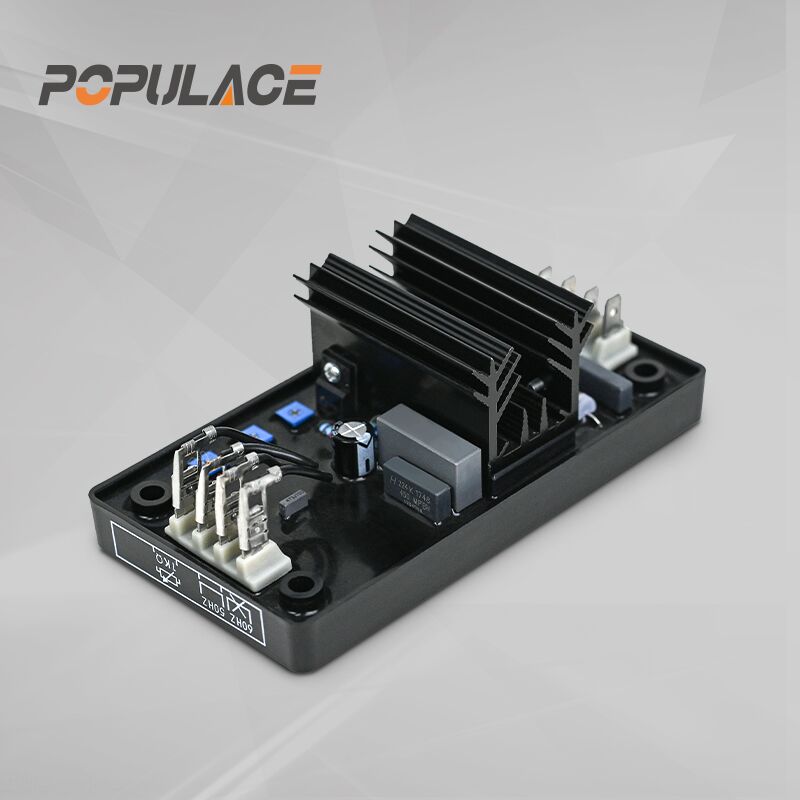

Generator Automatic Voltage Regulator Leroy Somer AVR R230
General Features
 | Generator Automatic Voltage Regulator Leroy Somer AVR R230 220v voltage regulator AVR R230 for power generator is a half-wave phase controlled thyristor type Auto Voltage Regulator and forms part of the excitation system for a brushless generator. |
 | Features Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of ± 1.5%. |
| Product Name | Generator Automatic Voltage Regulator Leroy Somer AVR R230 | |
| Sensing/Power input | Voltage | Max 100VDC at 120VCD input |
| Frequency | 50/60 Hz jumper selectable | |
| Output | Voltage | Max. 90 Vdc @ 207 Vac input |
| Current | Continous 8A,intermittent 10A-10S | |
| Voltage Regulation | <±1% RMS with 4% engine governing |

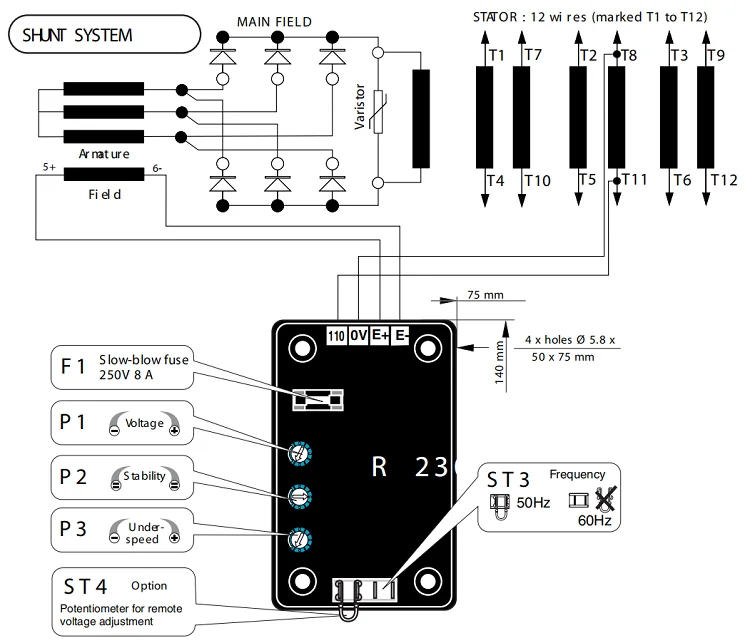

Connection Diagram
There are no reviews yet.
Be the first to review “Generator Automatic Voltage Regulator Leroy Somer AVR R230”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Generator AVR Not Producing Voltage: 5 Causes and How to Test Them
A generator that runs but produces no power is most often an excitation or AVR problem. Here are the five causes we see most in the field, the multimeter check for each, and when the regulator itself needs replacing.
Read Guide → Engineering GuideGenerator Rotating Rectifier Diode Testing: How to Test Forward & Reverse Diodes with a Multimeter
Comprehensive guide to testing generator rotating rectifier assemblies (RSK1001, RSK2001, RSK5001, SSAYEC432). Learn how to diagnose shorted diodes, verify surge varistors, and replace rectifiers.
Read Guide →FAQ
Leroy Somer AVR R230 is an Compatible replacement. Send a photo of your alternator nameplate (model, voltage, frequency) and our engineers confirm the match against R230 before dispatch.
Yes. Output voltage, stability adjustment and protection functions are bench-tested on every unit, and the test record travels with your order.
Leroy Somer AVR R230: overall size 155×90×60mm, shipping weight approx. 0.3kg. Send your panel or packing constraints and we confirm fit.
Leroy Somer AVR R230 is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Leroy Somer AVR R230 carries CE,ISO9001 certification from our ISO9001-certified Xiamen facility.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
Yes. Detailed terminal connection wiring diagrams and user manuals for R230 are available upon request. Contact our technical support with your generator setup to receive the documentation.
The technical datasheet and complete specification sheet for R230 can be provided directly by our sales team. Contact [email protected] or submit an inquiry to receive the PDF specification.
