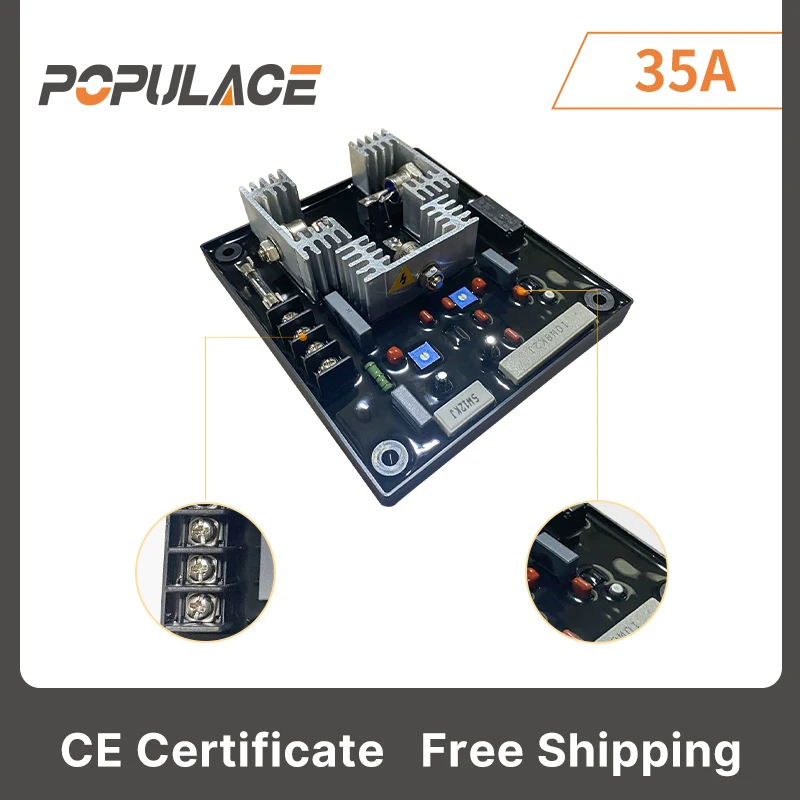

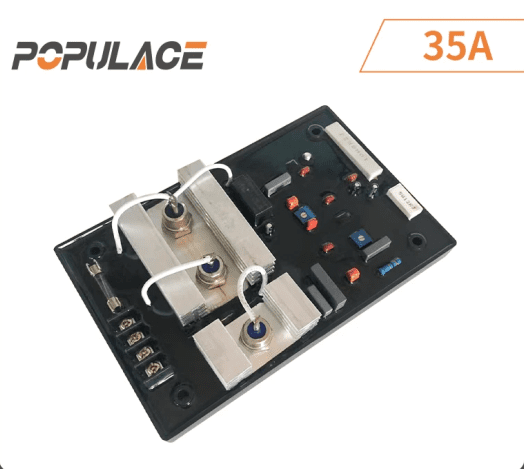

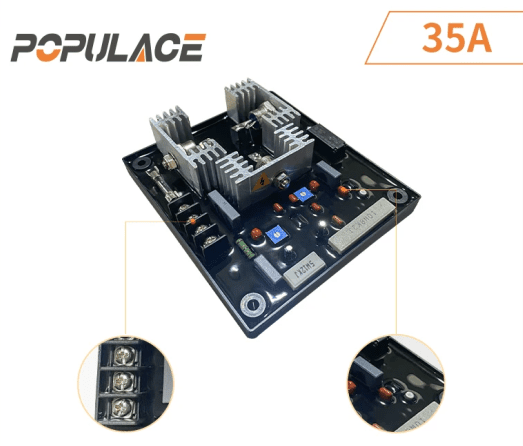

Generator Automatic Voltage Regulator Brushless AVR GAVR-35A
Model: GAVR-35A
Compatible GAVR-35A generator AVR at factory wholesale price. 100% bench-tested, 13-month warranty, in stock. Request wiring diagram, datasheet & quote.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | GAVR-35A |
| Overall Size | 220 × 150 × 160 mm |
| Weight | 1kg |
| Certification | CE,ISO9001 |
Applications
- Standby and prime diesel generator sets fitted with GAVR alternators in telecom, data-centre and hospital backup power
- Commercial and industrial gensets requiring stable output voltage under varying load
- Alternator rewinds and rebuilds where the original AVR is obsolete or damaged
Product Description
Generator Automatic Voltage Regulator Brushless AVR GAVR-35A
General Features
 | Generator Automatic Voltage Regulator Brushless AVR GAVR-35A controls the excitation current according to the alternator’s output voltage. With a very simple conception, the shunt excitation alternator is auto excited with a R250 and excitation alternator does not have a short circuit capacity, voltage regulation: around ±0.5%. |
 | Features * Around ± 0.5 %
|
| Voltage regulation | Around ± 0.5 % |
| Supply range | 85 to 139 V |
| Potentiometer for voltage setting | 1000Ω /0.5W min. setting range ±5% |
| Operating at 50 Hz | Threshold at 48 Hz without LAM forimpactsbetween 30 and 40% of the rated Load |
| Threshold at 48 Hz with LAM 13% forimpacts between 40 and 70% of the rated Load. | |
| Threshold at 48 Hz with LAM 25% for impacts > 70% of the rated load | |
| Operating at 60 Hz | Threshold at 58 Hz without LAM forimpacts between 30 and 40% of the Rated load |
| Threshold at 58Hz with LAM 13% for impacts 40 and 70% of the rated load | |
| Threshold at 58Hz with LAM 25% for impacts > 70% of the rated load | |
| Specific operating | Threshold at 57Hz without LAM for speed variations at a steady state > 2 Hz |
| Threshold at 65Hz without LAM for speed and tractelec / gearlec (U/F gradient) | |
| Special: the factory setting 48Hz 2U/F gradient; a special programme is Possible on request. | |
| Threshold at 47.5 Hz without LAM for speed variations at a steady state > 2 Hz |
