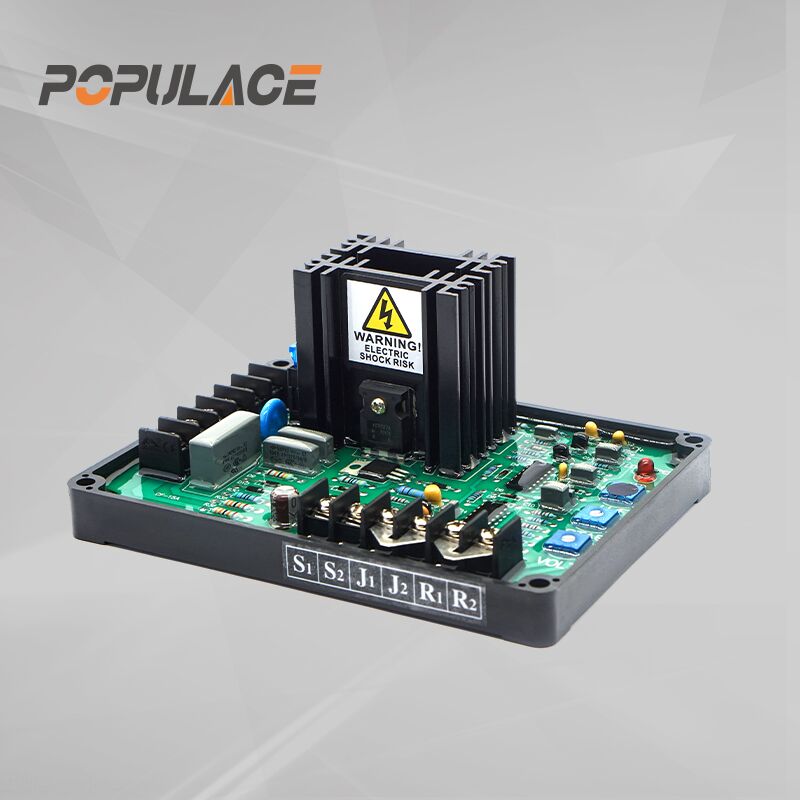

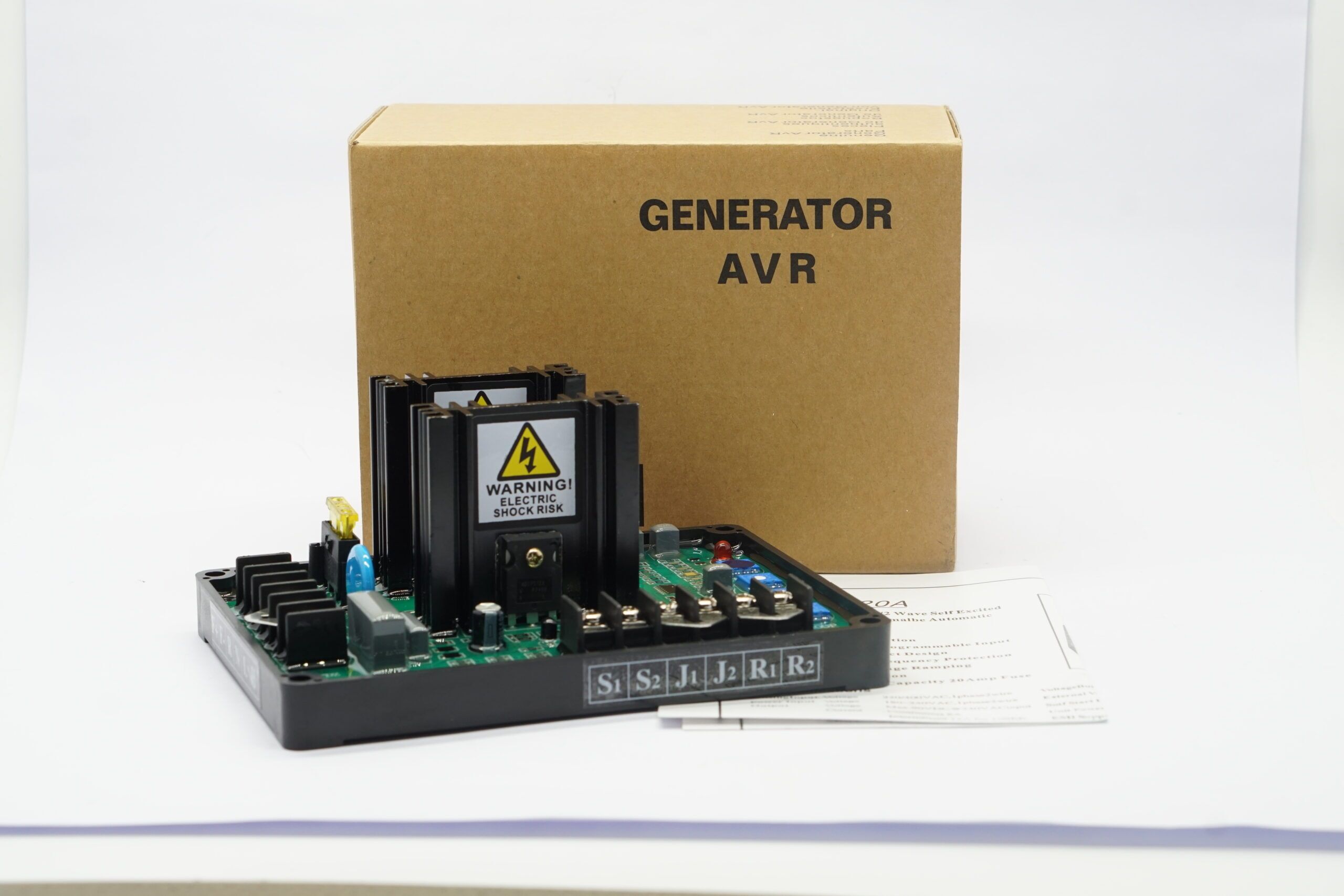

Generator Automatic Voltage Regulator Brushless AVR GAVR-20A
General Features
Generator Automatic Voltage Regulator Brushless AVR GAVR-20A
AVR Universal ac regulator avr is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brusheless generator.
In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Features
* VoltageBuild-up: Residualvolts at A VR teminal>5VAC
* External Volts Adjustment: +/-7%with 1K Ω 1watt trimmer
* Sotf Start Ramp Time: 3sec.
* Unit Power Dissipation: Max.8Watt
* EMI Suppression: Internal Electromagnetic Interference Filtering
* Thermal.Drift: 0.05%per ‘C chage in AVR ambient
* Under frequency protection: 60Hz system presets knee point at 57Hz
