Basler AVC63-4 / AVC63-4D Analog Generator Voltage Regulator

Model: AVC63-4

Basler AVC63-4 analog voltage regulator for brushless generators. Verify the 190–240 Vac input/sensing range, field resistance and adjustment layout for AVC63-4 versus AVC63-4D before replacement.

Place of OriginFujian, China
Brand NamePOPULACE
Model NumberAVC63-4
MOQ1 pc
Lead time2-3 days after payment (in stock), 3-7 days for production batches

Applications

  • Standby and prime diesel generator sets fitted with Basler alternators in telecom, data-centre and hospital backup power
  • Commercial and industrial gensets requiring stable output voltage under varying load
  • Alternator rewinds and rebuilds where the original AVR is obsolete or damaged

Product Description

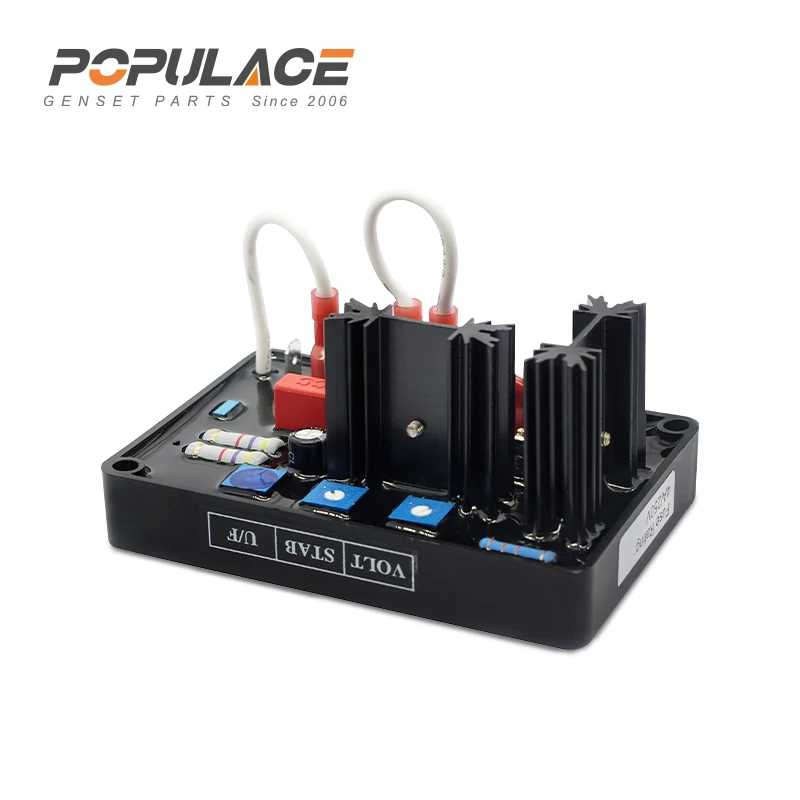

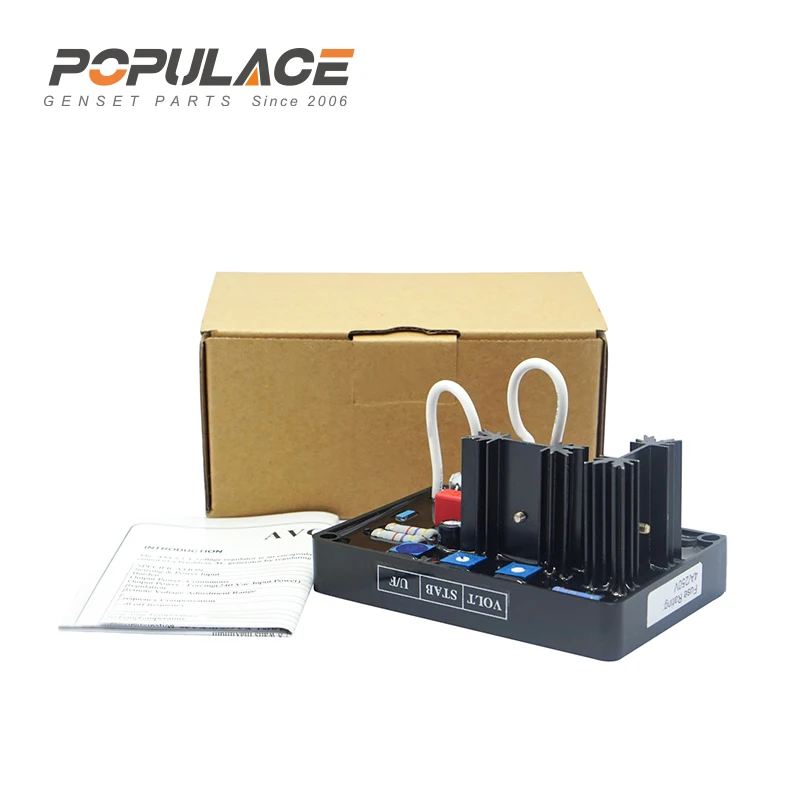

Generator Automatic Voltage Regulator Basler AVR AVC63-4

General Features

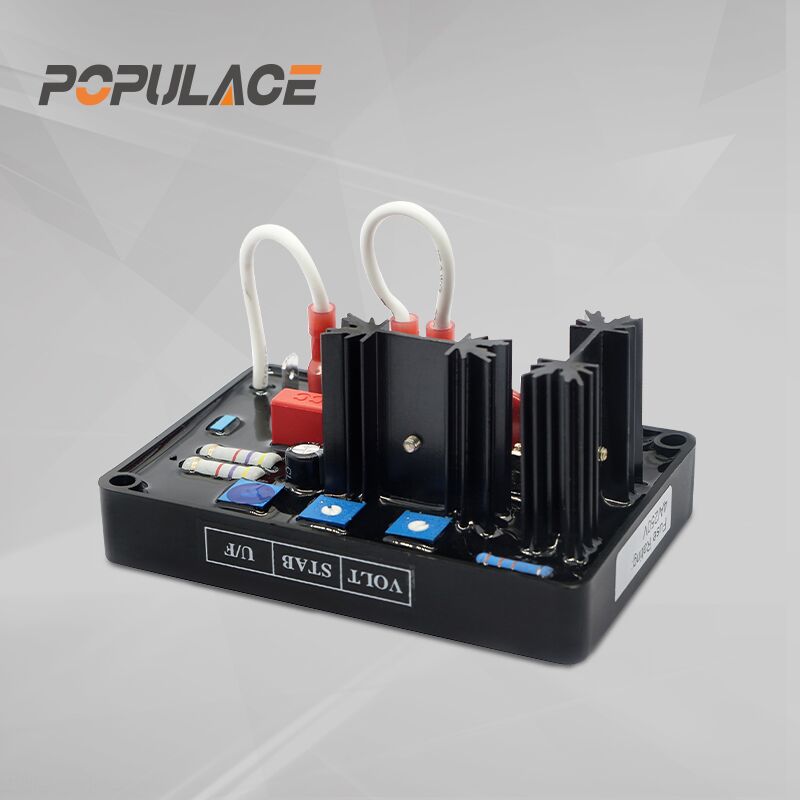

Basler AVR AVC63-4

Generator Automatic Voltage Regulator Basler AVR AVC63-4

The AVC63-4 / AVC63-4D instruction manual specifies a 190–240 Vac single-phase power and sensing input, 50/60 Hz, ±10%; see the manual for the separate 171–264 Vac voltage adjustment range.

The supplied Revision F manual covers both AVC63-4 and AVC63-4D. Their adjustment potentiometers are accessed from different locations; verify the exact model before installation.

Basler AVR AVC63-4

Features

* Voltage regulation < +/-1%

*Soft start voltage ramping

*Sensing voltage loss protection

*190–240 Vac single-phase power/sensing input (see AVC63-4 / AVC63-4D Revision F manual)

*Under frequency roll off protection

*With under frequency LED indicator

Product NameDiesel Generator Set Spare Part AVR AVC63-4
Sensing/Power inputVoltage190-240Vac
Frequency50/60 Hz jumper selectable
OutputVoltage63 Vdc at 240 Vac power input
CurrentContinuous 4A

Basler AVC63-4 / AVC63-4D Analog Generator Voltage Regulator — Connection & Terminal Verification

Electrical pinouts, terminal blocks, and sensing wire inputs must match your generator panel layout before applying power.

Terminal & Wiring Notice: Pin assignments and harness connectors can vary between hardware revisions and firmware versions. Never wire terminals based on guesswork or schematics from another model series.

Need help checking terminal compatibility?

Send a clear photo of your existing controller label and rear wire harness to our technical team.

WhatsApp Terminal Verification

Reference Schematics & Terminal Layout

Wiring diagram and terminal reference sheets for Basler AVC63-4 / AVC63-4D Analog Generator Voltage Regulator are verified individually by our engineering staff upon inquiry. Contact technical support with your panel layout for the matching schematic.

Technical Manual & Documentation

Documentation upon Request

Specific wiring sheets and installation instructions are available for verified generator models. Contact technical support with your module variant to request applicable documents.

FAQ

The manual lists 190–240 Vac, single-phase, 50/60 Hz, ±10% for the power and sensing input, common with the AC power input. It separately lists a 171–264 Vac voltage adjustment range. Check the specific generator circuit before installation.

The manual covers both models. Their adjustment potentiometers are in different locations: AVC63-4 controls are accessed on the terminals/components side, while AVC63-4D controls are accessed through the front panel. Confirm the label and control layout before ordering.

The specified DC resistance range is 15–100 Ω. Check the exciter-field data against the correct manual before connecting a replacement regulator.

The manual lists 4 Adc at 63 Vdc (252 W) maximum continuous output and 7 Adc at 100 Vdc (700 W) one-minute forcing with 240 Vac power input. These are controller ratings, not a guarantee of system compatibility.

A Basler AVC63-4 / AVC63-4D instruction manual (Revision F) was supplied for this product mapping. Ask support to confirm the exact model-specific document and revision before installation; do not substitute the 4D adjustment layout for AVC63-4.

Send the controller nameplate/model, generator voltage and frequency, exciter-field resistance and a description or photo of the adjustment-control layout. Confirm wiring against the unit-specific manual before energizing.
