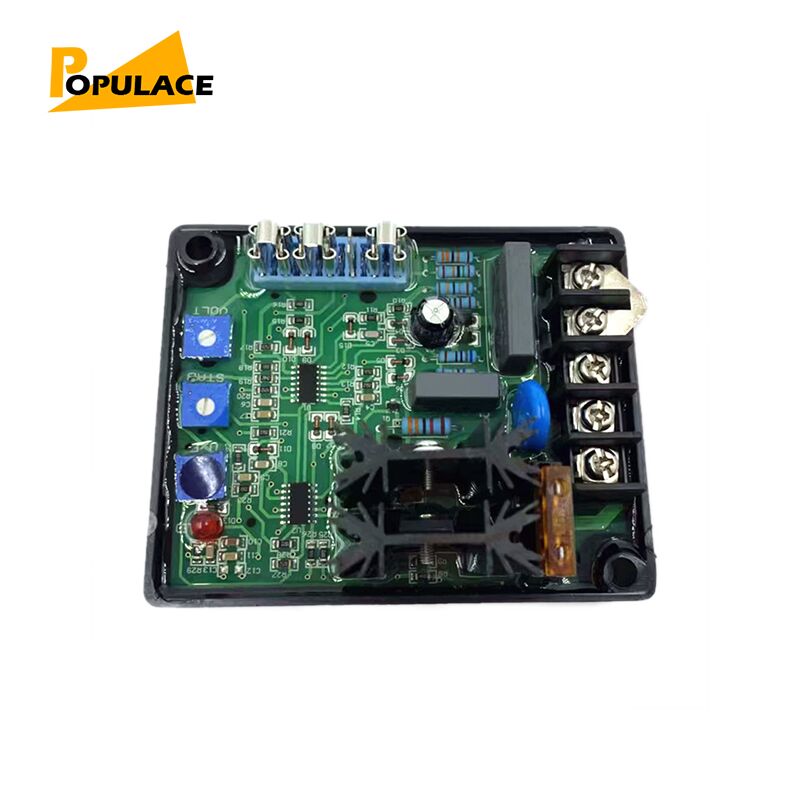

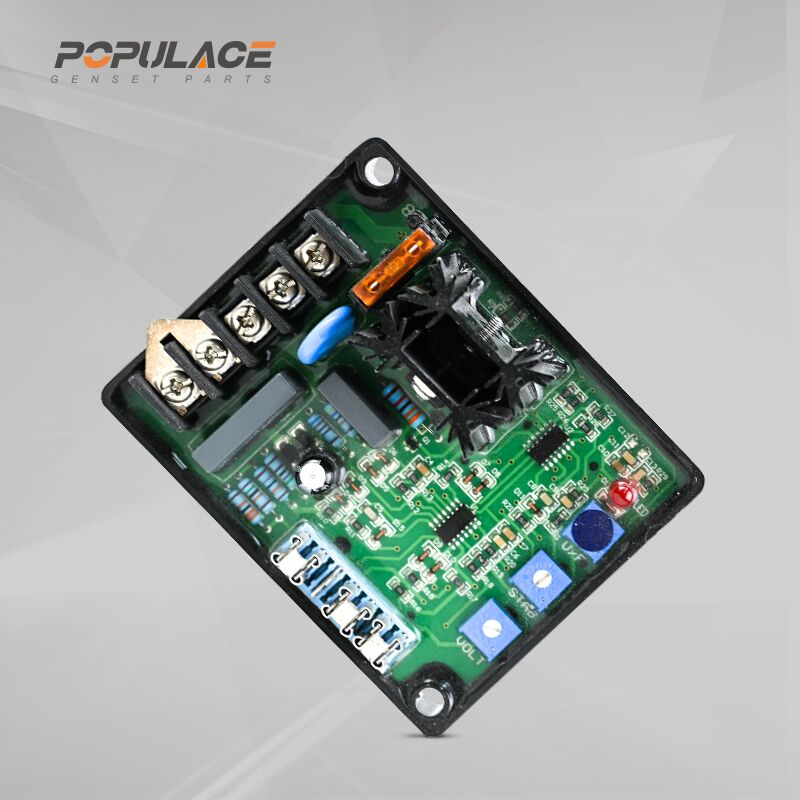

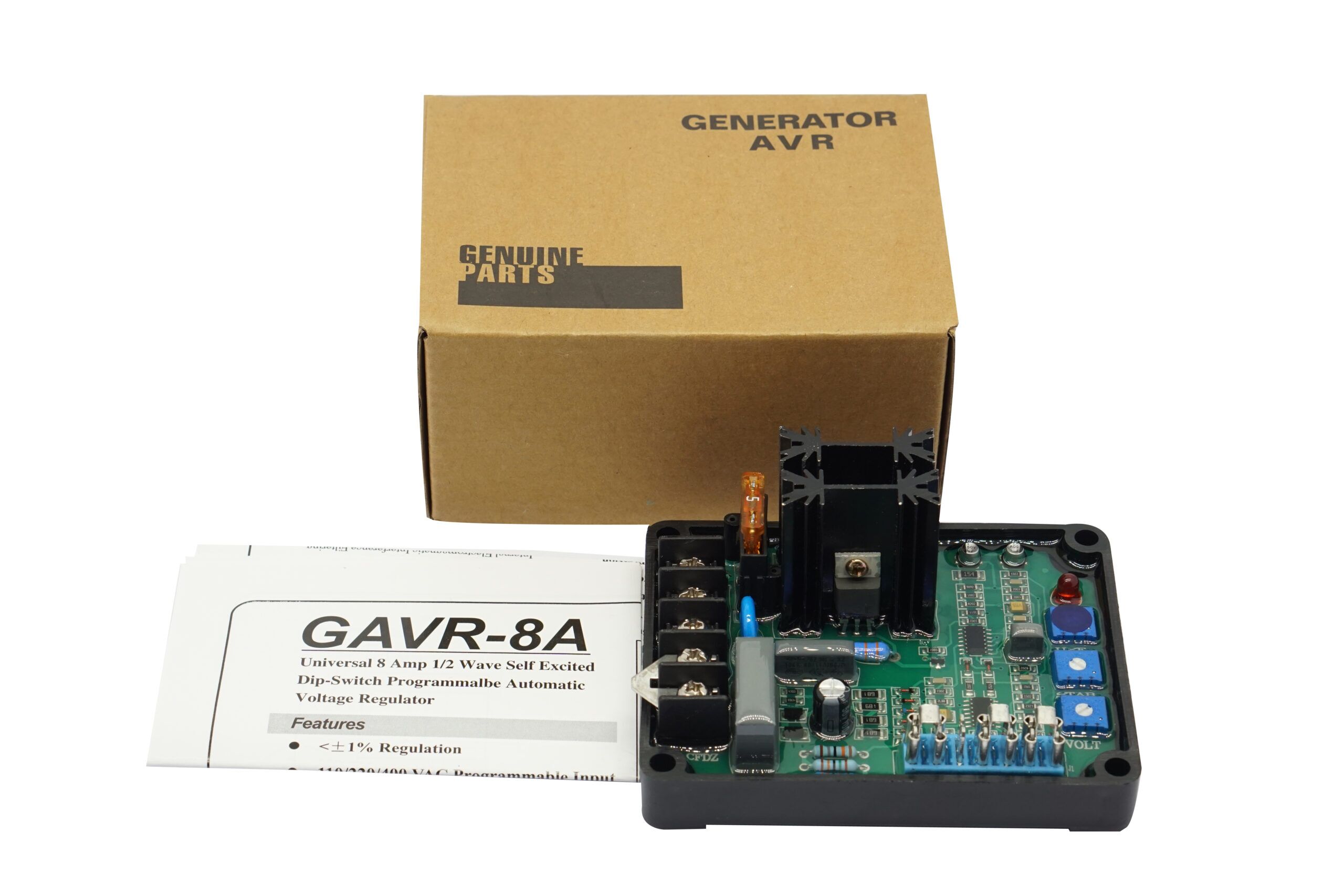

Generator Automatic Voltage Regulator Brushless AVR GAVR-8A
Model: GAVR-8A
Compatible GAVR-8A generator AVR at factory wholesale price. 100% bench-tested, 13-month warranty, in stock. Request wiring diagram, datasheet & quote.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | GAVR-8A |
| Overall Size | 120 × 90 × 60 mm |
| Weight | 0.22kg |
| Certification | CE,ISO9001 |
| Sensing Input | 110/220/400 VAC selectable, 1-phase 2-wire |
| Power Input | 100-260 VAC, 1-phase 2-wire, 50/60 Hz |
| Excitation Output | Max 90 VDC @ 240 VAC input, continuous 3A (intermittent 5A for 10s) |
| Voltage Regulation | < ±1% RMS (with 4% engine governing) |
| Under-Frequency Protection | Factory knee at 45 Hz (50Hz) / 55 Hz (60Hz) with Red LED |
| Lead time | 2-3 days (in stock) |
Applications
- Standby and prime diesel generator sets fitted with POPULACE-compatible alternators in telecom, data-centre and hospital backup power
- Commercial and industrial gensets requiring stable output voltage under varying load
- Alternator rewinds and rebuilds where the original AVR is obsolete or damaged
Product Description
The GAVR-8A is a universal, half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) designed for small to medium-sized brushless AC generators. Engineered with rugged potting and a compact footprint, the GAVR-8A delivers reliable voltage stabilization (< ±1% RMS), built-in 8A fuse protection, soft-start voltage ramping, and under-frequency roll-off (UFRO) to protect generator exciter components.

The module supports selectable sensing inputs (110V, 220V, or 400V AC) and dual-frequency operation (50Hz or 60Hz) configured via straightforward terminal jumper links, eliminating the requirement for external step-down sensing transformers.
Technical Specifications Matrix
| Parameter | Operating Limits & Standards | Notes & Field Conditions |
|---|---|---|
| Sensing Input Voltage | 110 / 220 / 400 VAC selectable (1-phase 2-wire) | Configurable via terminal links (7-6 or 6-5) |
| Power Input Voltage | 100 to 260 VAC, 1-phase 2-wire | 50/60 Hz nominal operating frequency |
| Excitation Output | Max 90 VDC at 240 VAC input | Continuous 3A DC; Intermittent 5A DC for 10 seconds |
| Exciter Field Resistance | Minimum 15 Ω, Maximum 100 Ω | Minimum exciter field stator resistance |
| Steady-State Regulation | < ±1% RMS | With 4% engine speed governing |
| Residual Build-Up Voltage | ≥ 5 VAC remaining at AVR power terminals | Below 5 VAC requires manual battery field flashing |
| Soft-Start Ramp Time | 2 seconds nominal | Prevents voltage overshoot during engine run-up |
| Under-Frequency Knee | 45 Hz (50Hz system) / 55 Hz (60Hz system) | Factory preset; Status indicated by Red LED |
| Unit Power Dissipation | Maximum 8 Watts | Integral heat-sink dissipation |
| Thermal Drift | 0.03% per °C change in ambient | Measured after thermal equilibrium |
| Internal Protection Fuse | 8A 250V fast-blow fuse | Protects the output power thyristor circuit |
| External Volts Adjustment | ±7% with 1 kΩ 1W remote trimmer | Terminals 1 & 2 (shorted when trimmer is not used) |
| Dimensions & Weight | 107.0 mm (L) × 82.0 mm (W) × 50.0 mm (H) | Net weight approximately 0.22 kg |
Terminal Connections & Jumper Settings Guide

The GAVR-8A features screw-terminal connections and jumper configuration links across terminals 1 to 7:
| Terminal Designation | Function Description | Connection Requirements & Jumper Settings |
|---|---|---|
| 1, 2 | Remote Voltage Hand Trimmer | Fit link 1-2 for local voltage adjustment; remove link and connect 1 kΩ 1W trimmer for ±7% remote trim. |
| 3, 4 | Frequency Selection (50Hz/60Hz) | Close (Link 3-4): 50Hz operation (knee at 45Hz); Open (No Link): 60Hz operation (knee at 55Hz). |
| 5, 6, 7 | Sensing Voltage Selection | Close 6-7: 220 VAC sensing; Close 5-6: 110 VAC sensing; open for 400 VAC sensing networks. |
| 0, 110, 220, 380 | AC Input Sensing Network | Connect generator stator lines according to system phase voltage. |
| F+, F- | Main Exciter Field Output | Connect F+ to exciter field positive, F- to exciter field negative (min 15 Ω). |

Potentiometer Calibration Procedure
The GAVR-8A incorporates three multi-turn on-board potentiometers for field tuning:
- VOLT (Voltage Adjustment):
- Bring generator up to rated speed (50Hz/1500 rpm or 60Hz/1800 rpm).
- Turn VOLT trimmer clockwise to increase generator terminal voltage, counter-clockwise to decrease until reaching nominal rated voltage.
- STAB (Stability Adjustment):
- With generator running no-load, turn STAB counter-clockwise until output voltage begins to oscillate.
- Slowly rotate STAB clockwise until voltage stabilizes, then advance an additional 1/5 turn clockwise to guarantee transient recovery margin.
- U/F (Under-Frequency Knee Adjustment):
- Lower engine speed to 45 Hz (50Hz system) or 55 Hz (60Hz system).
- Adjust U/F potentiometer until the on-board LOW SPEED Red LED illuminates. Output voltage will ramp down proportionally to protect exciter stator from thermal saturation.
Field Troubleshooting & Diagnostic Checks
- Generator Fails to Build Up Voltage (Residual Volts < 5 VAC):
- Check residual voltage across generator terminals. If below 5 VAC, momentarily connect a 12V DC battery (+ to F+, - to F-) through a protective diode and current-limiting resistor to flash the exciter field.
- Output Voltage Excessive / Uncontrollable:
- Check continuity across terminals 1 & 2. An open circuit on remote trimmer terminals causes full-voltage drive.
- Verify that sensing input voltage is present across terminals 5/6/7.
- Voltage Dips Sharply Under Moderate Load:
- Check whether the Red LED illuminates. If engine speed droops below the U/F knee point, the AVR initiates under-frequency voltage roll-off.
Generator Automatic Voltage Regulator Brushless AVR GAVR-8A — Connection & Terminal Verification
Electrical pinouts, terminal blocks, and sensing wire inputs must match your generator panel layout before applying power.
Need help checking terminal compatibility?
Send a clear photo of your existing controller label and rear wire harness to our technical team.
Reference Schematics & Terminal Layout
Technical Manual & Documentation
Generator Automatic Voltage Regulator Brushless AVR GAVR-8A Technical Documentation
Verified POPULACE replacement reference document
FAQ
This POPULACE unit is a compatible replacement for the AVR 8A. Send a photo of your alternator nameplate (model, voltage, frequency) and our engineers confirm the match against 8A before dispatch.
Yes. Output voltage, stability adjustment and protection functions are bench-tested on every unit, and the test record travels with your order.
AVR 8A: overall size 120 × 90 × 60 mm, shipping weight approx. 0.22kg. Send your panel or packing constraints and we confirm fit.
AVR 8A is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
AVR 8A carries CE,ISO9001 certification from our ISO9001-certified Xiamen facility.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
Yes. Detailed terminal connection wiring diagrams and user manuals for GAVR-8A are available upon request. Contact our technical support with your generator setup to receive the documentation.
Yes. The complete technical manual featuring terminal connection schematics, jumper settings, and calibration procedures can be downloaded directly using the [Manual (PDF)] button on this page.
The complete technical datasheet and installation guide for GAVR-8A are available directly through the download button above or under the Manual & FAQ tab.
