Generator Engine Hunting: How to Diagnose Governor Instability

What Hunting Tells You

A healthy governor loop measures speed, compares it to the setpoint and trims fuel — with damping, so corrections overlap smoothly. Hunting is that loop over-correcting: RPM (and with it frequency and voltage) swings in a repeating rhythm, from half a second to several seconds per cycle. The cause is always one of four things: mechanical play, a weak or noisy speed signal, an over-tight control setting, or a failing actuator.

Work outside-in — mechanical first, electronics second, settings last.

Step 1 — Linkage and Actuator Mechanics

Before touching any setting, put the engine at operating temperature and inspect the fuel-rack linkage by hand:

  • Free play / pin wear. Any slop between lever and ball-joint becomes dead-time in the loop; dead-time becomes oscillation. Tighten or replace.
  • Binding. Disconnect the actuator and work the rack by hand through its full travel — it must move smoothly with no sticky spots. A gummed rack from stale fuel mimics a dead governor perfectly.
  • Actuator stroke. The actuator must sweep the full rack range. A unit that has lost power (worn gears, weak motor) hunts under load but seems fine at no-load — a classic field tell.

Step 2 — The Speed Pickup Signal

Electronic governors live on the magnetic speed sensor (MPU) signal:

  • Air gap. Typical spec is 0.5-1.5 mm to the toothed wheel. Too wide → weak signal at low RPM → unstable idle hunting; too narrow → mechanical contact and intermittent dropouts.
  • Damage. Chipped teeth, a cracked magnet, cable shield damage running beside power cables — all inject noise the controller tries to correct.
  • Frequency sanity. With a meter/frequency input, the MPU should output a clean AC waveform scaling with RPM.

Step 3 — Controller Settings (Droop and Gain)

If mechanics and signal are clean, the loop tuning is the issue:

  • Zero droop on a single set is the most common software cause of sustained hunting: droop deliberately lets speed sag with load so corrections stop overlapping. Isolated units usually want 3-5 % droop; 0 % is for paralleled operation with proper load sharing.
  • Gain/proportional too high = over-correcting on every load step (surging exactly when the breaker closes is the signature). Reduce gain until one clean recovery, then back off slightly.
  • Stability/compensation set too light produces fast small-amplitude oscillation; increase in small steps.

Record the original setting before changing anything.

Step 4 — When the Governor Itself Is Failing

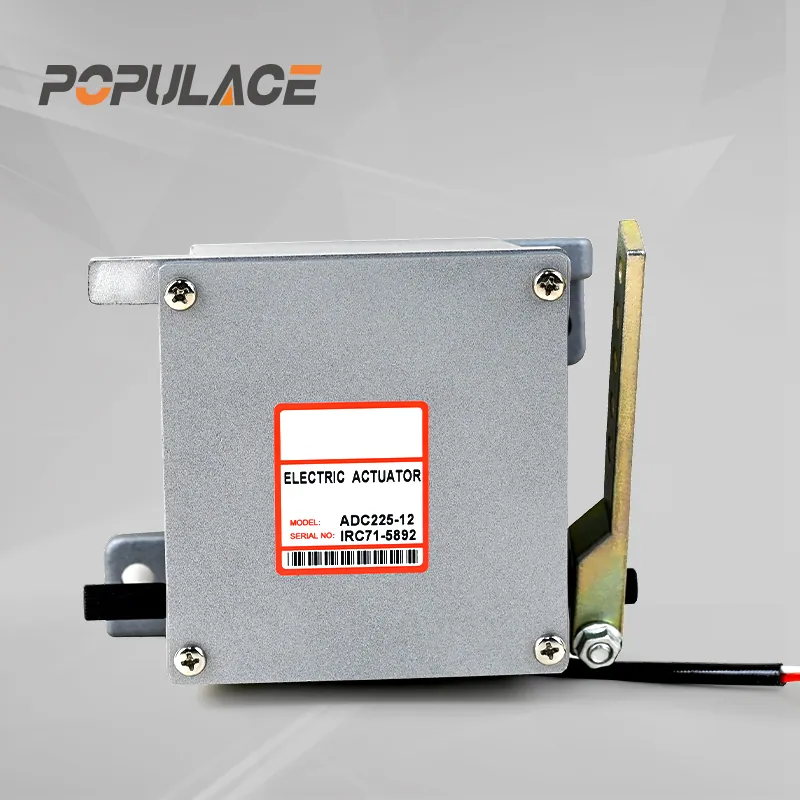

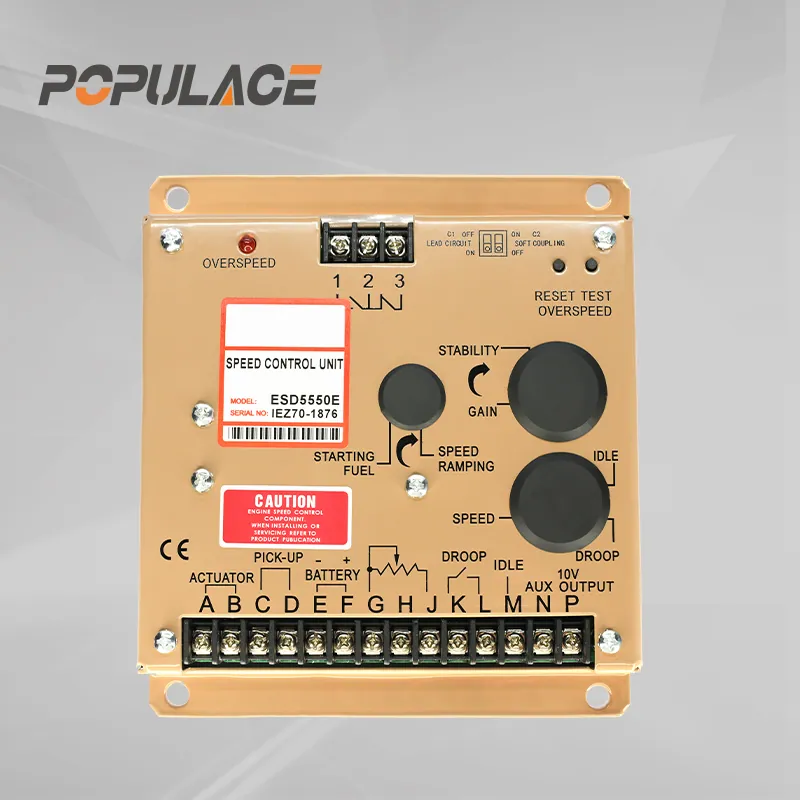

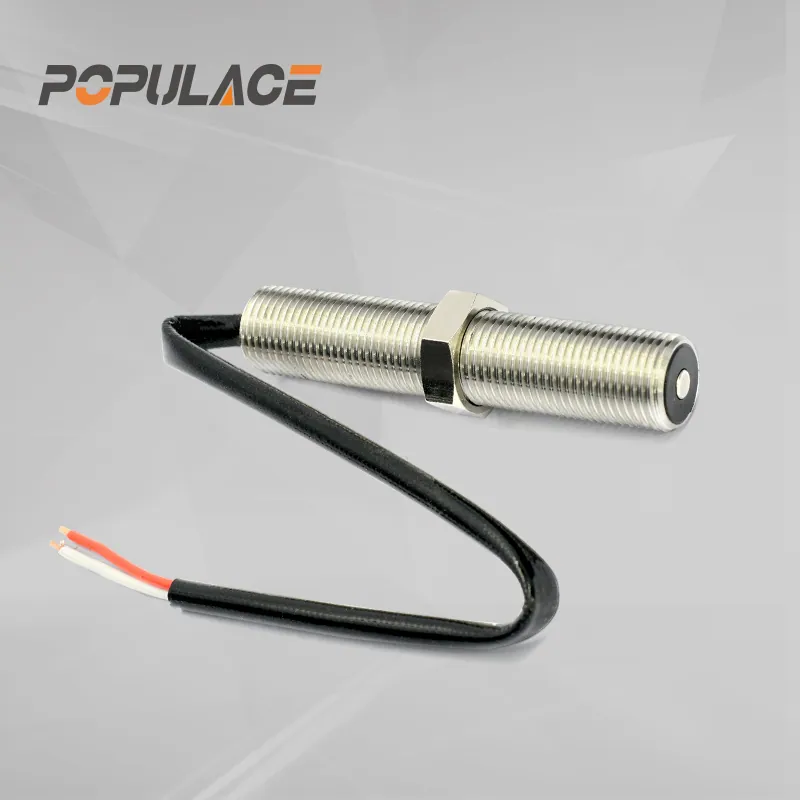

Intermittent output, one channel dead on a dual-redundant MPU setup, burnt actuator driver, erratic behaviour after a supply surge — these point at the control unit. For GAC-style systems the replaceable members of the chain are the controller (e.g. the ESD5550E speed control unit), the actuator (e.g. the ADC225) and the pickup (e.g. the MSP675 magnetic speed sensor). Swap one variable at a time and re-test under the load that used to hunt.

Load-Bank Proof Before Return to Service

After any governor-chain repair, run a stepped load test (25 → 50 → 75 → 100 % with 5-minute holds) and watch recovery: a healthy set settles within 1-2 oscillations and holds rated frequency. That is exactly the bench cycle each speed-control unit we ship passes before dispatch.
