Why a Generator Runs but Produces No Voltage
“Engine runs fine, no power at the output terminals” is the single most common fault call our workshop receives. On a brushless alternator the voltage build-up chain is short — residual magnetism in the rotor, the exciter, the rotating field, then the AVR controlling excitation current. When output is missing, or sits stuck around 50-70 V, the break is somewhere in that chain. Work through these five checks in order.
1. Loss of residual magnetism
After long storage, a trip, or running a load that exceeds rating, the rotor’s residual flux can collapse. Symptom: the alternator spins, the AVR looks healthy, but there is no voltage at all.
Test: with the engine stopped, measure DC resistance across the field (terminals F+ / F-). A reading in the normal low-ohm range confirms the circuit is intact. To restore magnetism, briefly touch a 12 V DC source to the field terminals for a few seconds (positive to F+, negative to F-) with the AVR disconnected, then restart. If voltage builds, the problem was residual magnetism, not the regulator.
2. Open or shorted field / exciter winding
Test: disconnect the field leads and measure each winding. Continuity with a plausible resistance means the winding is good; an open circuit reads as infinite resistance. Also check each winding to ground — it should be open. A shorted exciter usually needs a rebuild rather than a part swap.
3. Blown diodes in the rotating rectifier
Rotating diodes that fail open break the excitation path; a shorted diode typically drags output down to that characteristic 50-70 V.
Test: with the rotor locked and the rectifier accessible, check each diode both directions with a multimeter diode test. It should conduct one way and block the other. Replace any diode that conducts or blocks both ways.
4. Wiring, sense leads and connections
Corroded spade terminals and a broken AVR sensing pair are common on older sets. The AVR regulates from the sensing voltage it sees; if the sense leads are open it cannot regulate properly.
Test: verify every connection against the wiring diagram, and confirm supply to the AVR (for SX460-type self-excited units, check the full-wave supply and the 2-phase sensing input).
5. The AVR itself has failed
If excitation supply, field windings, diodes and wiring all test good, the regulator is the remaining suspect. Classic physical signs: burnt smell, discoloured board, bulged components, or a stability/voltage pot that no longer changes output.
Test: many AVRs can be bench-checked by feeding the rated excitation input and confirming a controlled output appears on the field terminals. Compare against the datasheet. When in doubt, substitute a known-good unit.
Choosing a Replacement AVR

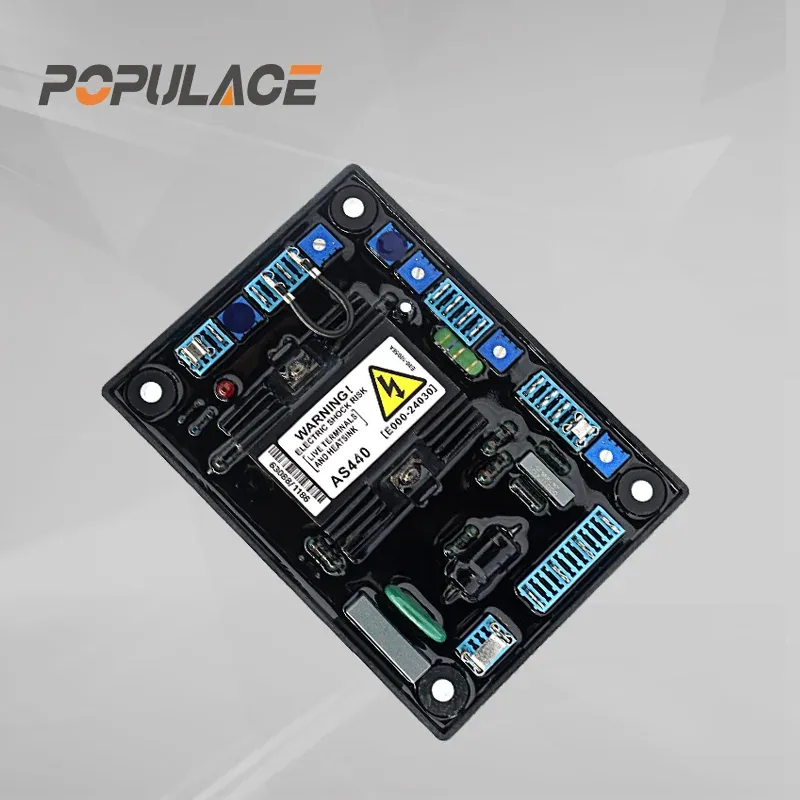

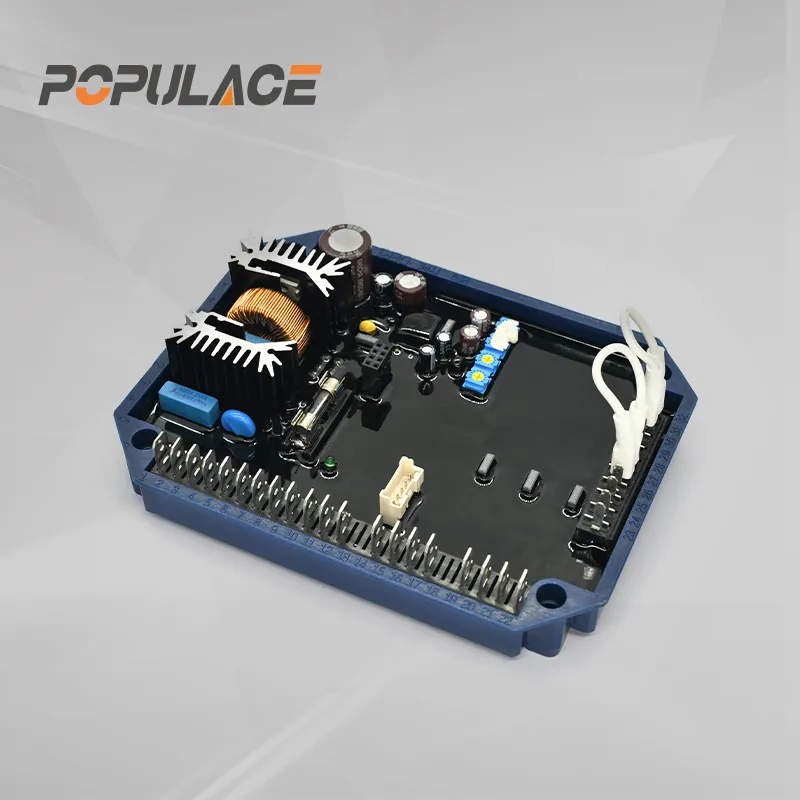

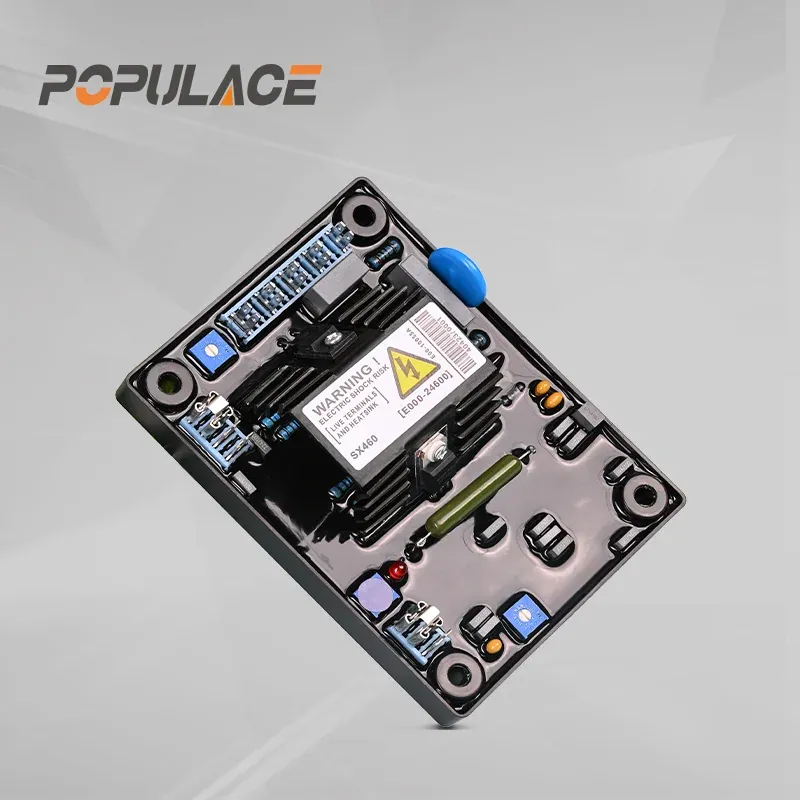

Match three things before ordering: the alternator model and data-plate number, the sensing arrangement (single- or three-phase), and the excitation type (self-excited or separately-excited / pilot-excitation). The Stamford SX460 is a widely used analogue self-excited regulator; the AS440 and the Mecc Alte DER1 cover other common frames. Send your alternator nameplate and we confirm the correct regulator before dispatch.
